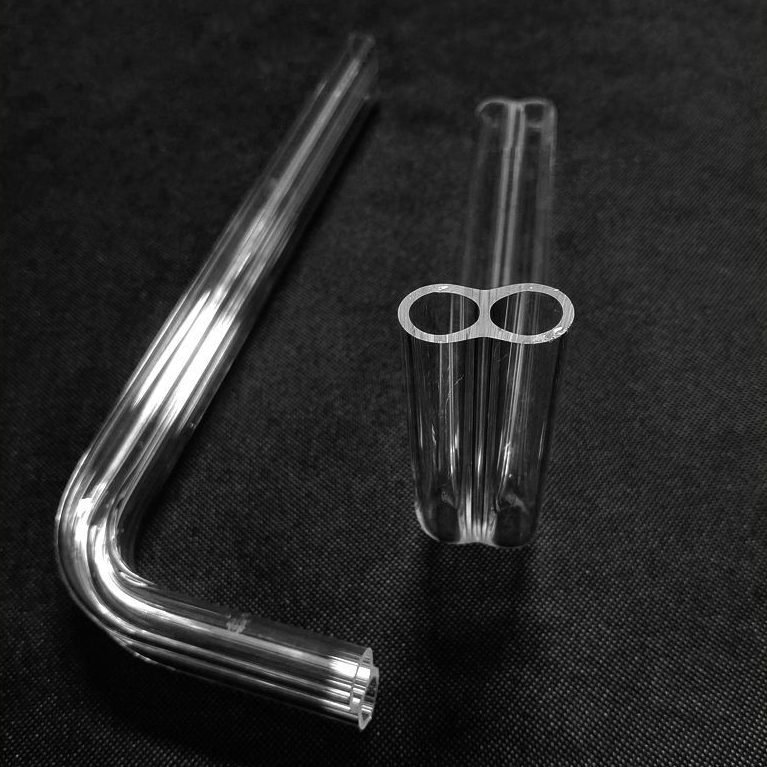

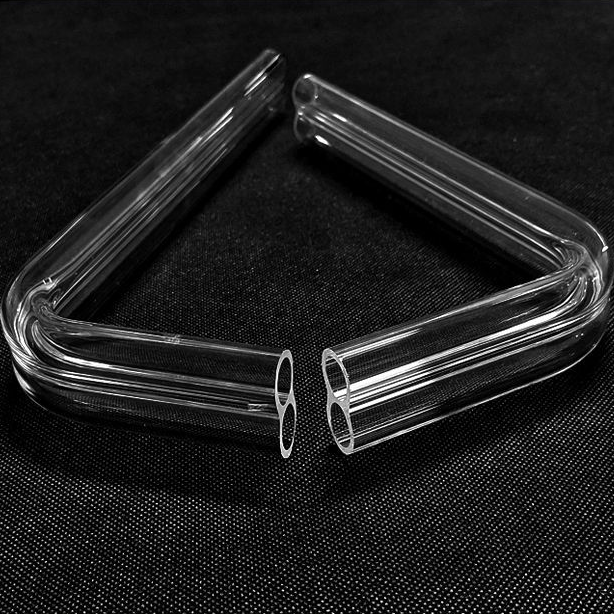

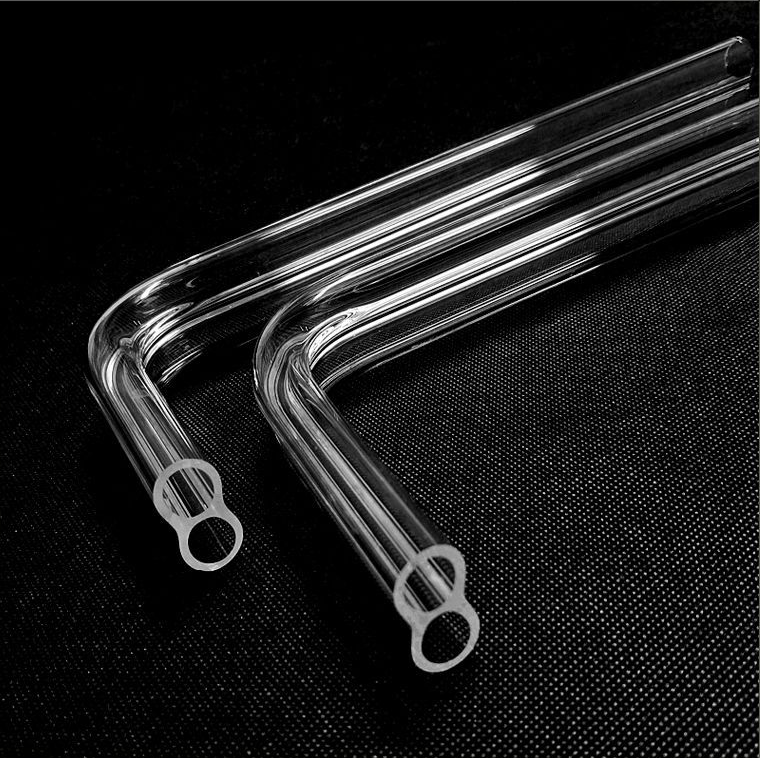

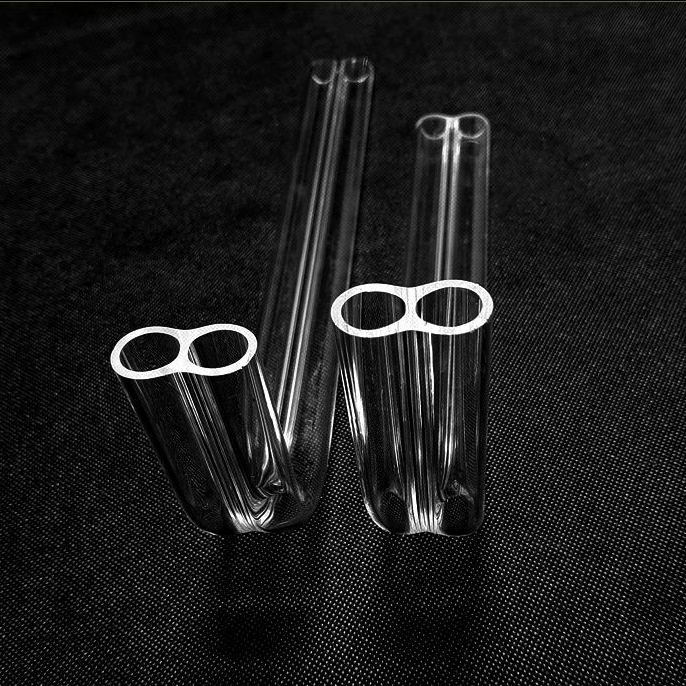

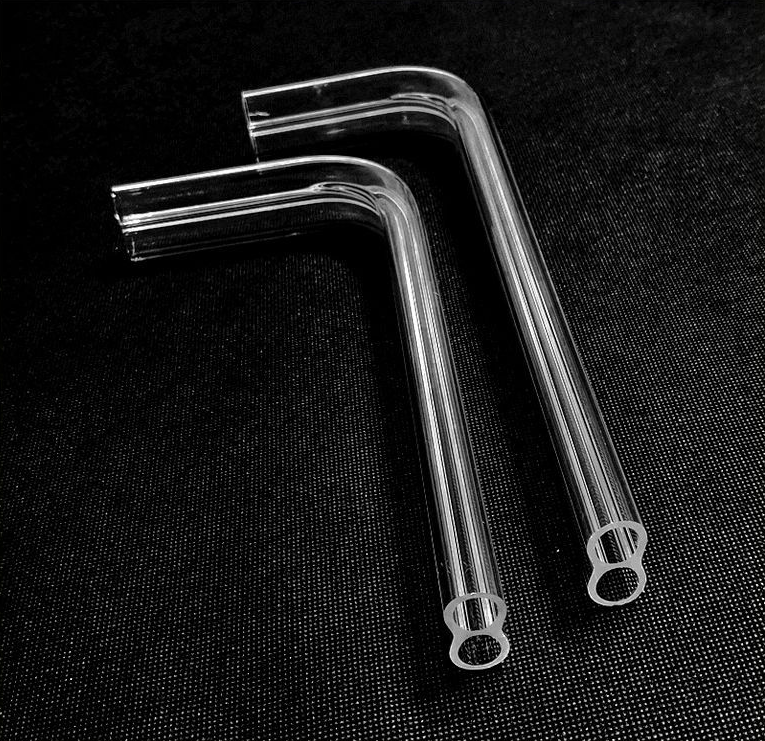

High-temperature (1100) Corrosion-resistant 99.999% Purity Ozone-Free Fused Quartz Double-tube Right-angle Elbow Bending Cutting
Product Description
Product Description
The Free Services You Can Enjoy
- We will create CAD drawings or solutions within 2 hours based on your description, application scenarios, and in combination with the product.
- Accept customize according to different diameter, thickness, length, or sending your drawing.
- Our designers have up to 15 years of work experience and are capable of formulating the correct solutions based solely on your usage scenarios.
- Please feel free to communicate with us to ensure that your needs are addressed!
| Specification: | Based on drawings or require customization. |
|---|---|
| Material | More than 99.99% SiO2 |
| Customized Service | Ends closing, sand blasting, polishing, bending, cutting, pinching, burning mouth, and so on. |
| Density g/cm³ | 2.2 |
| Maximum Operating Temperature | 1120℃ |
| Tolerance Control | min: ±0.01mm (Adjust according to the actual situation) |
Company Profile
Physical Properties
| Thermal Properties | Coefficient of Expansion (20℃ - 350℃) | 5.5 × 10-7 / ℃ |
|---|---|---|
| Thermal Conductivity (W/m·℃, 20℃) | 1.4 | |
| Specific Heat (J/kg, 20℃) | 670 | |
| Softening Point (viscosity) | 1730℃ | |
| Annealing Point | 1215℃ | |
| Deformation Temperature (long time heat retaining) | 1120℃ |
| Electrical Properties | Electrical Resistivity (350℃, ohm-cm) | 7 × 107 |
|---|---|---|
| Insulating Strength (20℃, KV/cm) | 250 - 400 | |
| Dielectric Constant | 3.7 |
| Corrosion Amount | H2SO4 (Density 1.84, 2h, 20℃, g/cm²) | 1.4 × 10-8 |
|---|---|---|
| HNO3 (Density 1.4, 2h, 20℃, g/cm²) | 5 × 10-8 | |
| HCl (Density 1.19, 2h, 20℃, g/cm²) | 15 × 10-8 | |
| NaOH (1%, 2h, 110℃, g/cm²) | 166 × 10-6 | |
| KOH (1%, 2h, 98℃, g/cm²) | 68 × 10-6 |
| Mechanical Properties | Density (g/cm³) | 2.2 |
|---|---|---|
| Compression Strength (N/mm²) | 1100 | |
| Bending Strength (N/mm²) | 67 | |
| Tension Strength (N/mm²) | 48 | |
| Micro Hardness (N/mm²) | 8600 - 9800 | |
| Moh's Hardness | 5.5 - 6.5 |
Frequently Asked Questions
Q1. Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.
Q2. What about the delivery time?
Standard orders are delivered within 15 days after receiving your formal deposit.
Q3. Do you have any MOQ limit?
Low MOQ is available. Even 1pc for sample checking is fully supported.
Q4. How to proceed an order in your factory?
Firstly, let us know your requirements or application scenarios. Secondly, we quote according to your requirements or our suggestions. Thirdly, the customer confirms the samples and places a deposit for the formal order. Fourthly, we arrange mass production promptly.
Q5. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx, or TNT are optional for small orders, which usually take 3-5 days to arrive. Airline and sea shipping solutions are also available for larger quantities.
