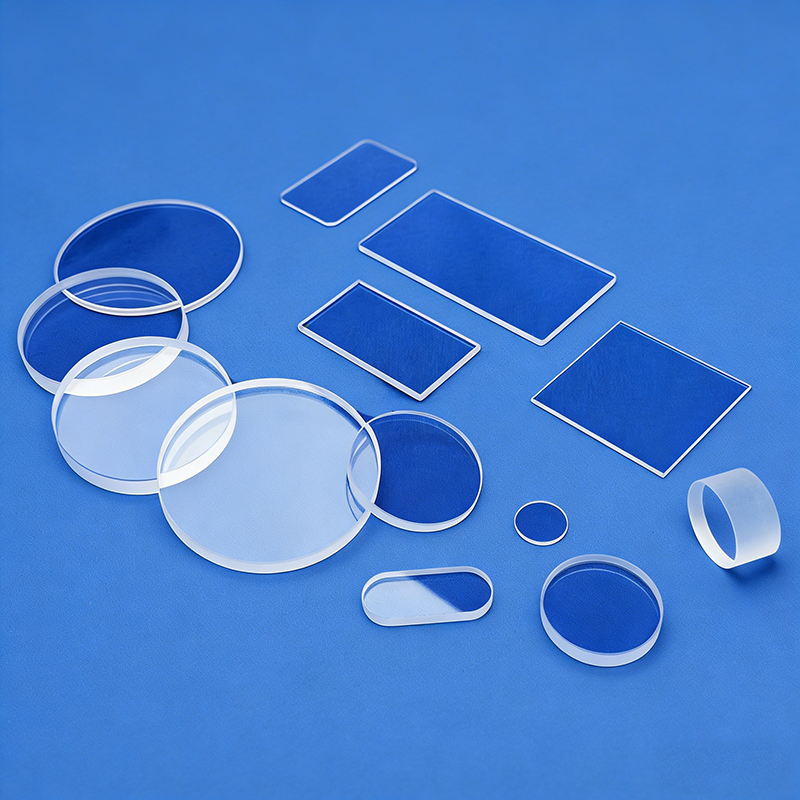

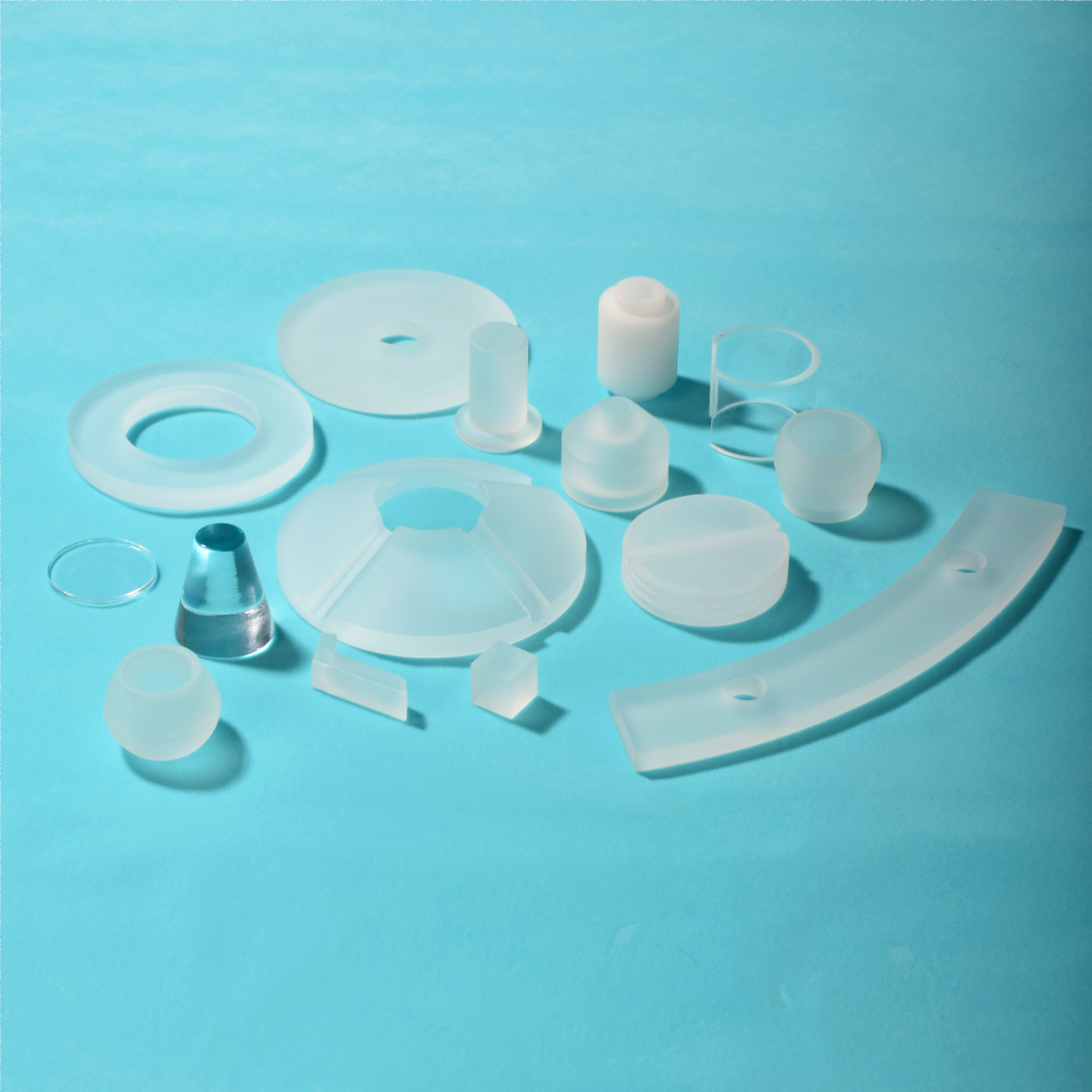

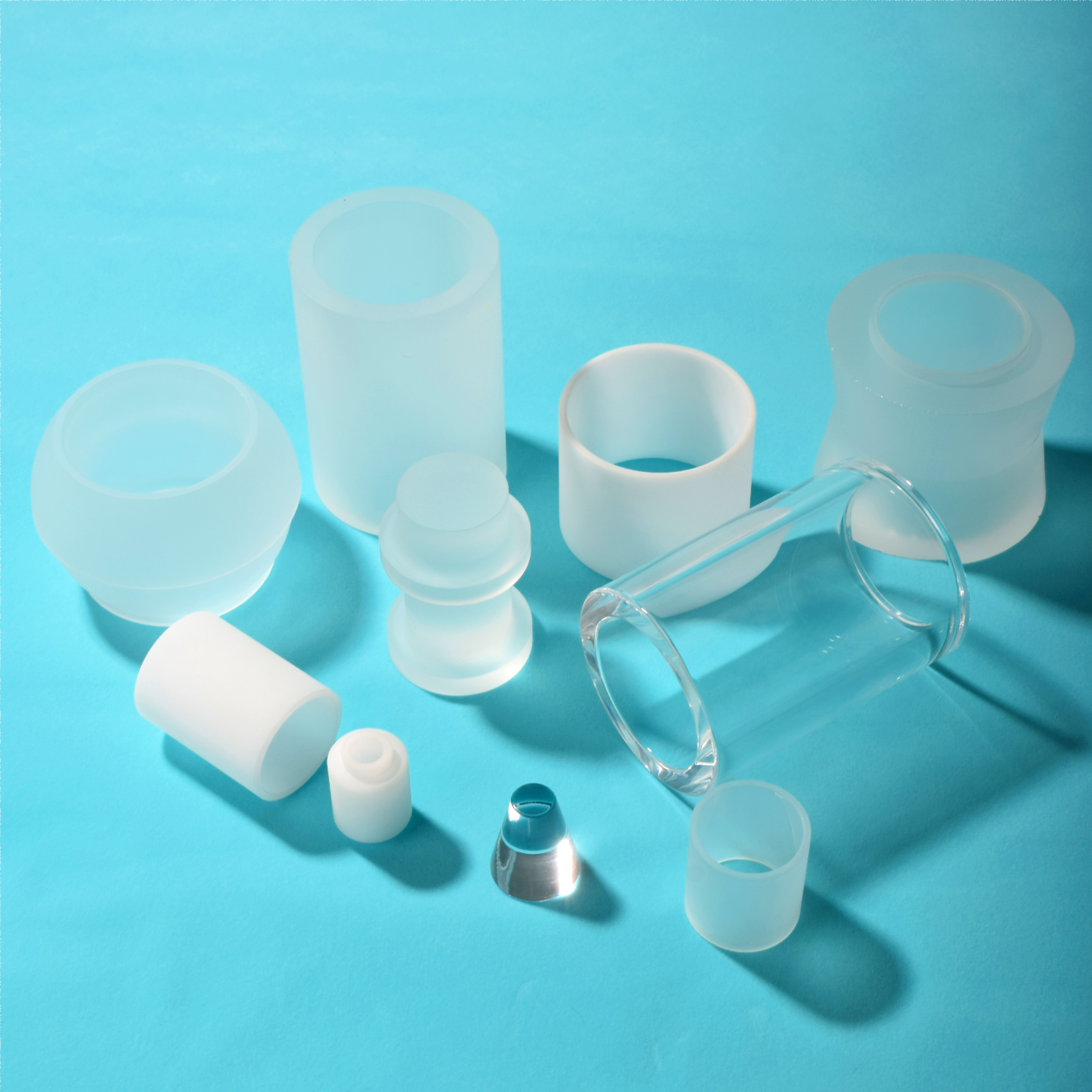

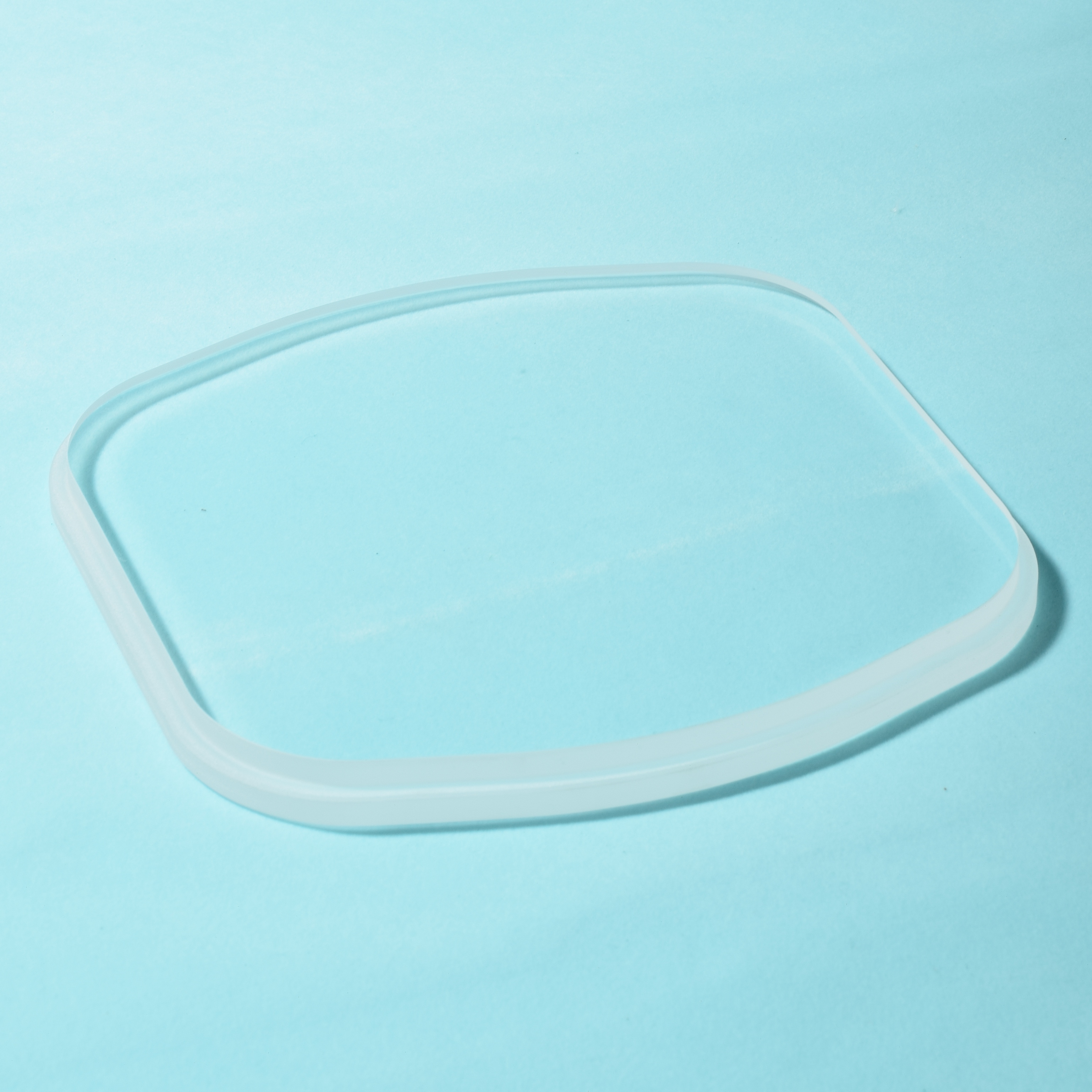

SJ QUARTZ Customized Translucent Natural Fused Quartz Arc-Welding Cutting Services Industrial Lab Applications High Purity Flat
Product Description

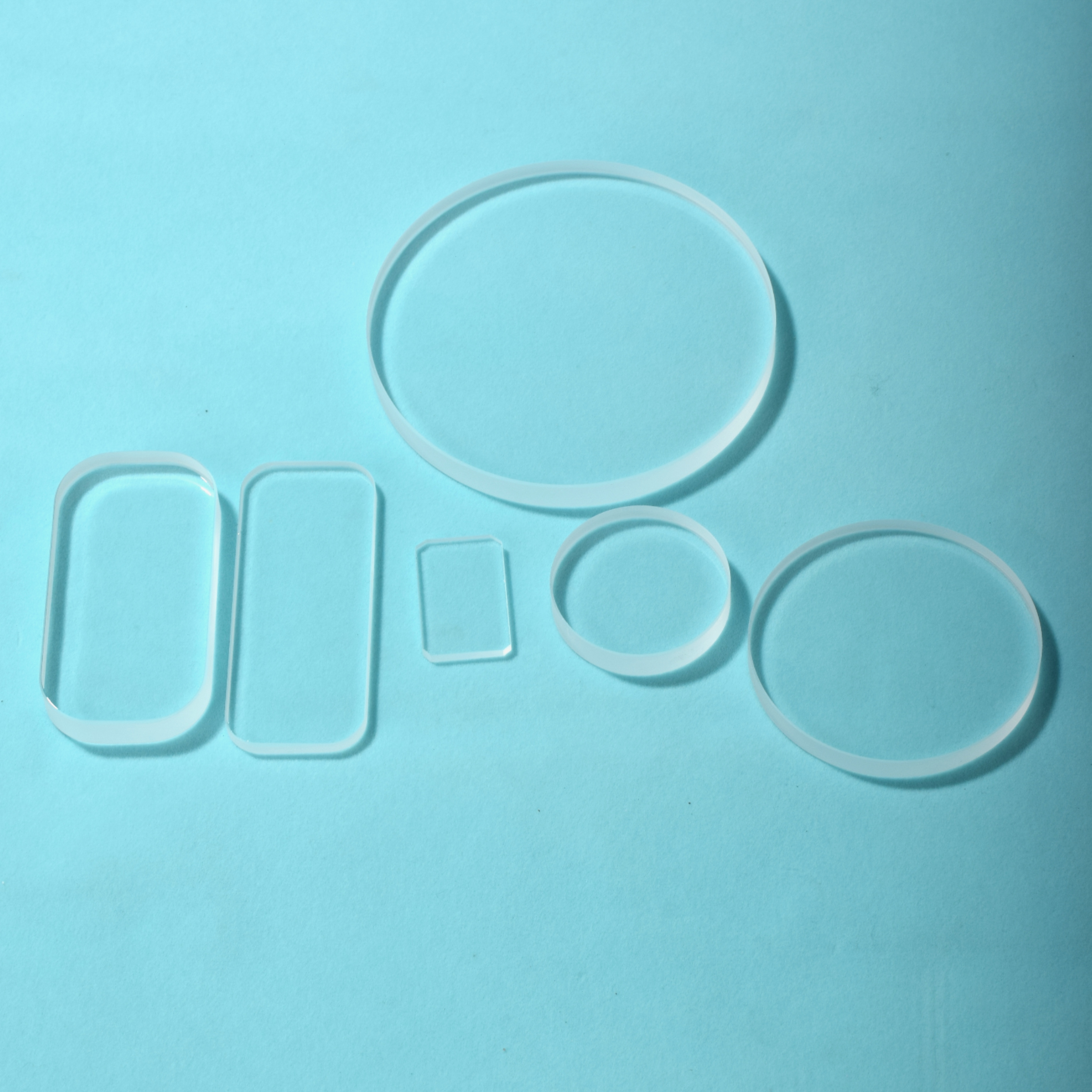

Product Specifications
| Specification | Based on drawings or custom requirement |
|---|---|
| Material | More than 99.99% SiO₂ |
| Customized Service | Ends closing, sand blasting, polishing, bending, cutting, pinching, burning mouth, and more |
| Density (g/cm³) | 2.2 |
| Max Operating Temp | 1120°C |
| Tolerance Control | Min: ±0.01mm (Adjusted according to practical conditions) |
* For properties not mentioned in the table, please consult customer service.
SJ QUARTZ Key Selling Points
Source Factory | Customizable | Export Quality | Multi-Scene
1. Ultra-High Purity & Stable Chemistry
99.99% SiO₂ | Acid/Alkali Resistant | No Harmful Leaching
For: Lab Ware, Semiconductor Eqpt, Food-Contact Parts
2. High Temp & Thermal Shock Resistant
1730°C Melting Point | 1100°C Long-Term Use | No Cracking
For: High-Temp Furnace, Heater Sheaths, Quartz Oil Burners
3. Superior UV & Optical Transmittance
1000x UV Transmittance vs Glass | Deep UV Compatible
For: UV Sterilizers, Optical/Laser Eqpt, PV Parts
4. Excellent Electrical Insulation
Stable Insulation (Room-High Temp) | Arc Resistant
For: High-Voltage Lamps, Vacuum Tubes, Semiconductor ICs
5. High Customizability
Precision Cutting/Engraving | Custom Size/Logo
For: B2B Custom Orders, Branded Components
6. Safe & Eco-Friendly
No Heavy Metals/Toxins | Meets International Safety Standards
For: Tableware, Baby Accessories, Medical Ware

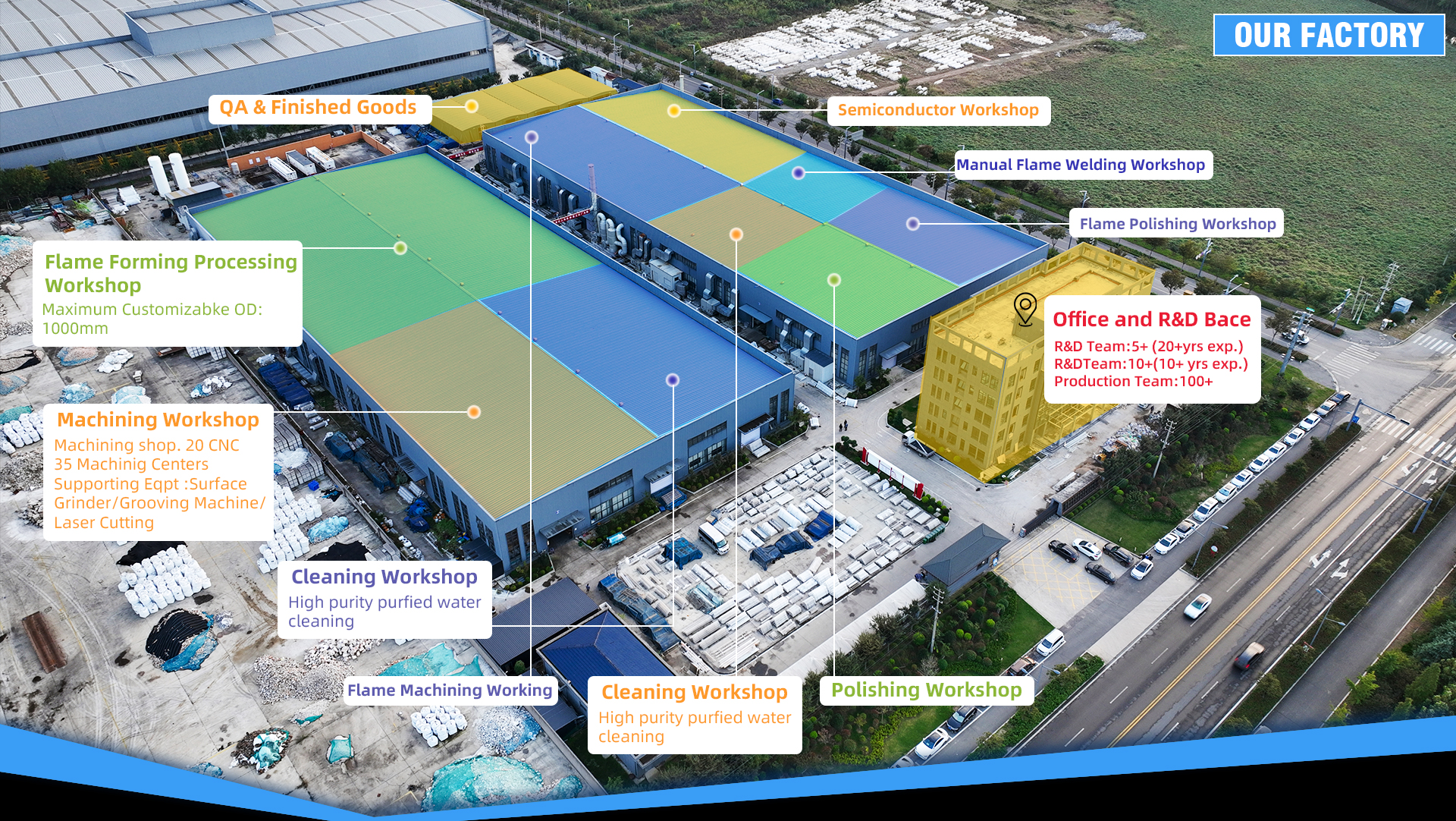

Company Profile
Quality Control & Packaging
Quality Control
Using three coordinates detector, height gauge electronic digital calipers, and measuring projector stress gauge to inspect the appearance and dimensional precision of products according to customer requirements. Full quality control data and inspection reports can be provided. All operators are qualified through rigorous inspection training, and all measuring equipment is managed under MSA control.
Packaging Specifications
The product itself is wrapped in bubble wrap, gaps are filled with protective foam, and the exterior is securely packed in a wooden box meeting export specifications. Please inform us if you have customized packaging requirements.
Customized Service
Equipped with in-house laser engraving machines, we can engrave trademarks, logos, serial numbers, and custom texts directly onto the product according to your exact requirements.
Physical Properties
| Property Category & Description | Tested Value / Specification | |
|---|---|---|
| Thermal Properties | Coefficient of Expansion (20°C - 350°C) | 5.5 × 10⁻⁷ / °C |
| Thermal Conductivity (W/m°C, 20°C) | 1.4 | |
| Specific Heat (J/kg, 20°C) | 670 | |
| Softening Point (Viscosity) | 1730°C | |
| Annealing Point | 1215°C | |
| Deformation Temperature (Long-time heat retaining) | 1120°C | |
| Electrical Properties | Electrical Resistivity (350°C, ohm-cm) | 7 × 10⁷ |
| Insulating Strength (20°C, KV/cm) | 250 - 400 | |
| Dielectric Constant | 3.7 | |
| Corrosion Resistance | H₂SO₄ (Density 1.84, 2h, 20°C) | 1.4 × 10⁻⁸ g/cm² |
| HNO₃ (Density 1.4, 2h, 20°C) | 5 × 10⁻⁸ g/cm² | |
| HCl (Density 1.19, 2h, 20°C) | 15 × 10⁻⁸ g/cm² | |
| NaOH (1%, 2h, 110°C) | 166 × 10⁻⁶ g/cm² | |
| KOH (1%, 2h, 98°C) | 68 × 10⁻⁶ g/cm² | |
| Mechanical Properties | Density (g/cm³) | 2.2 |
| Compression Strength (N/mm²) | 1100 | |
| Bending Strength (N/mm²) | 67 | |
| Tension Strength (N/mm²) | 48 | |
| Micro Hardness (N/mm²) | 8600 - 9800 | |
| Mohs Hardness | 5.5 - 6.5 | |
* For properties not mentioned in the table, please consult customer service.
Frequently Asked Questions (FAQ)
Q1: Can I have a sample order?
A: Yes, we welcome sample orders to test and verify quality performance.
Q2: What is the estimated delivery time?
A: Standard production and delivery are completed within 15 days after receiving the deposit.
Q3: Do you have an MOQ limit?
A: We maintain a low MOQ; 1pc for initial sample evaluation and checking is available.
Q4: How do I proceed with an order?
A: Firstly, inform us of your specific requirements or application. Secondly, we provide a quotation based on your specifications or our technical suggestions. Thirdly, the customer confirms the samples and places the deposit. Fourthly, production is arranged immediately.
Q5: How do you ship the goods and how long does it take to arrive?
A: Small orders are shipped via DHL, UPS, FedEx, or TNT and usually take 3-5 days to arrive. Air freight and sea freight options are also available for larger shipments.
Q6: Can you provide customized processing and laser engraving?
A: Yes, we provide full custom services including precision cutting, bending, sand blasting, and laser engraving for logos and marks according to your CAD drawings.
