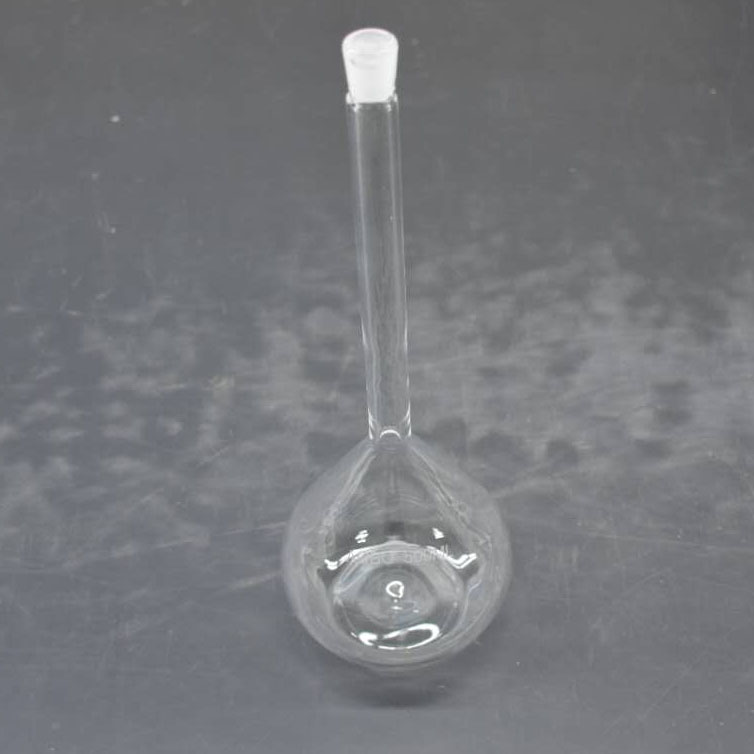

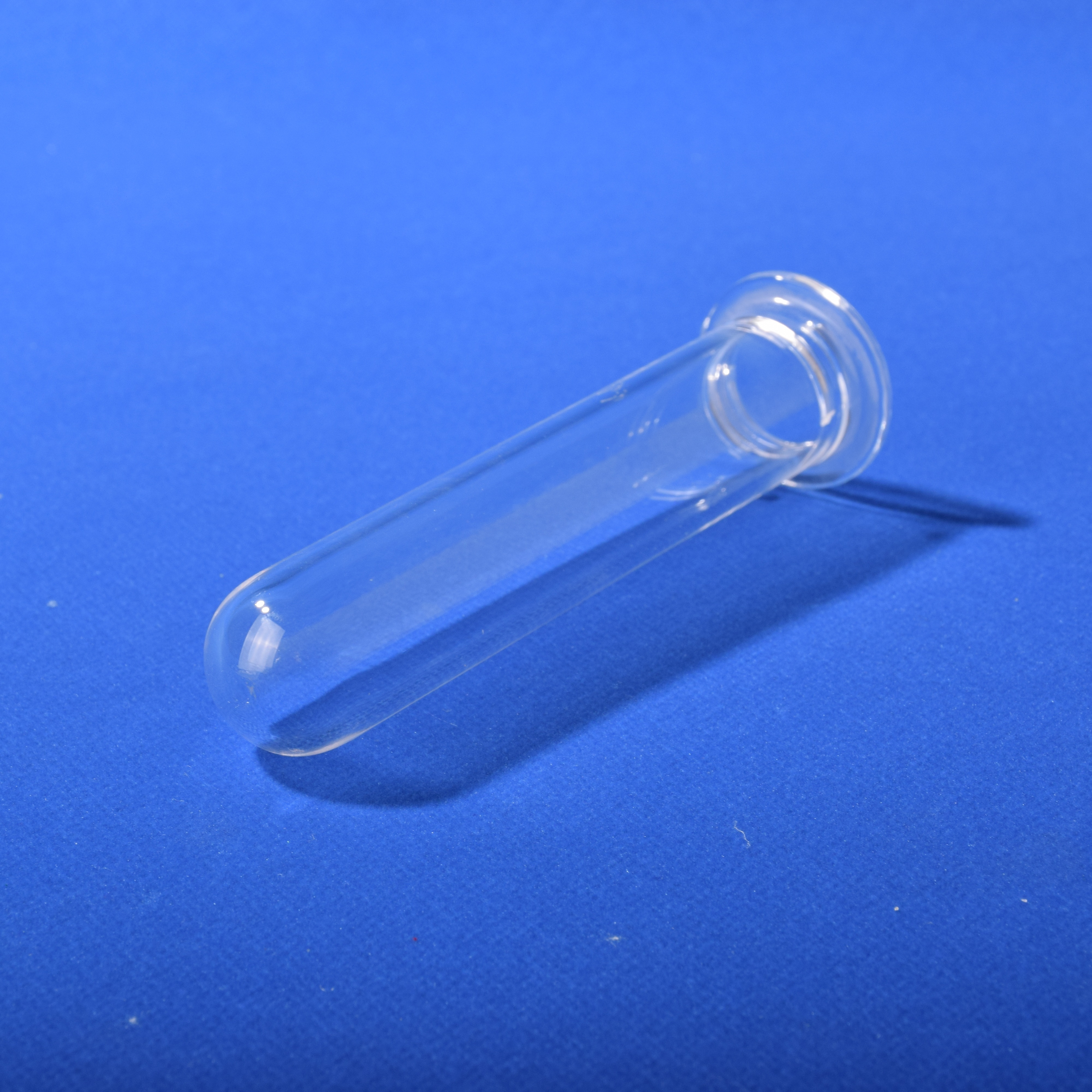

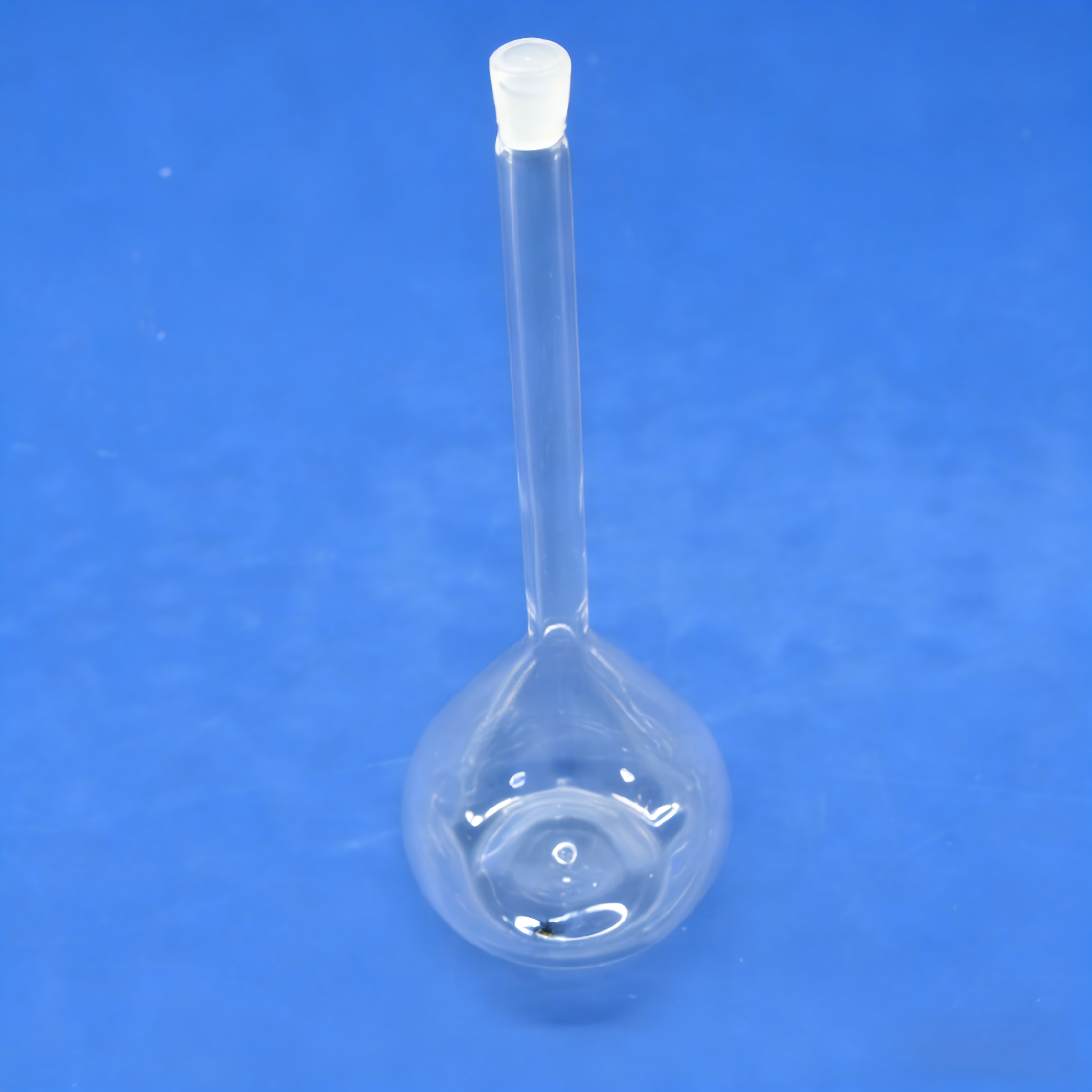

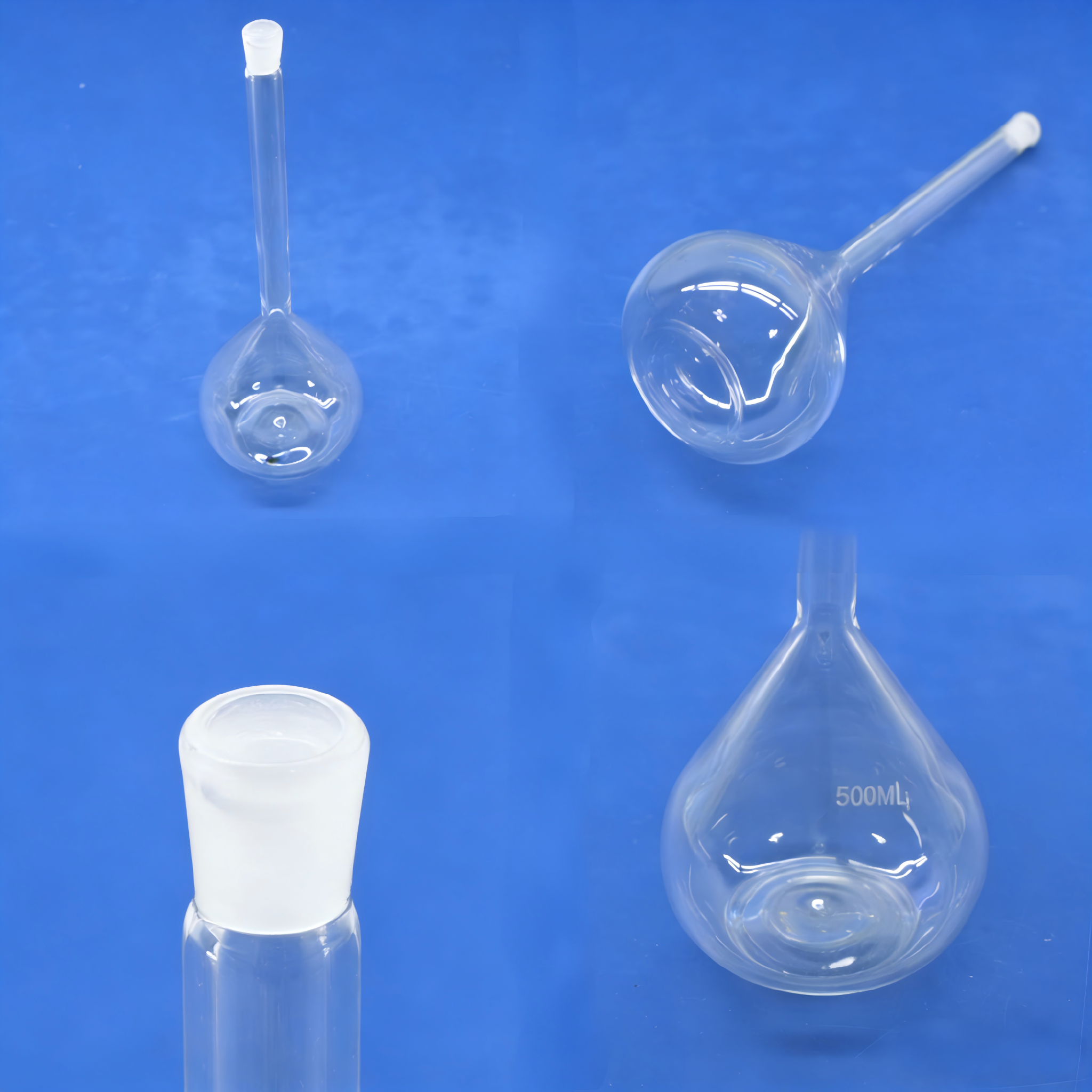

High Purity Transparent Quartz Glass Ampoule Customized Clear Quartz Flask Bending Cutting Welding Lab Use Ozone Free Polished
Product Description
Product Description
SJ QUARTZ Key Selling Points
Source Factory | Customizable | Export Quality | Multi-Scene Application
🧪
1. Ultra-High Purity & Stable Chemistry
99.99% SiO₂ | Acid/Alkali Resistant | No Harmful Leaching
For: Lab Ware, Semiconductor Equipment, Food-Contact Parts
🔥
2. High Temp & Thermal Shock Resistant
1730℃ Melting Point | 1100℃ Long-Term Use | No Cracking
For: High-Temp Furnace, Heater Sheaths, Quartz Oil Burners
💡
3. Superior UV & Optical Transmittance
1000x UV Transmittance vs Glass | Deep UV Compatible
For: UV Sterilizers, Optical/Laser Equipment, PV Parts
⚡
4. Excellent Electrical Insulation
Stable Insulation (Room to High Temp) | Arc Resistant
For: High-Voltage Lamps, Vacuum Tubes, Semiconductor ICs
⚙️
5. High Customizability
Precision Cutting/Engraving | Custom Size/Logo
For: B2B Custom Orders, Branded Components
🌱
6. Safe & Eco-Friendly
No Heavy Metals/Toxins | Meets International Safety Standards
For: Tableware, Baby Accessories, Medical Ware
Material Specifications & Quality
Material: Quartz Glass
Purity: More than 99.99%
Key Characteristics:
- High quality competitive price and elegant appearance
- High temperature and corrosion resistance
- No bubbles and zero processing defects
- Extended operational lifespan

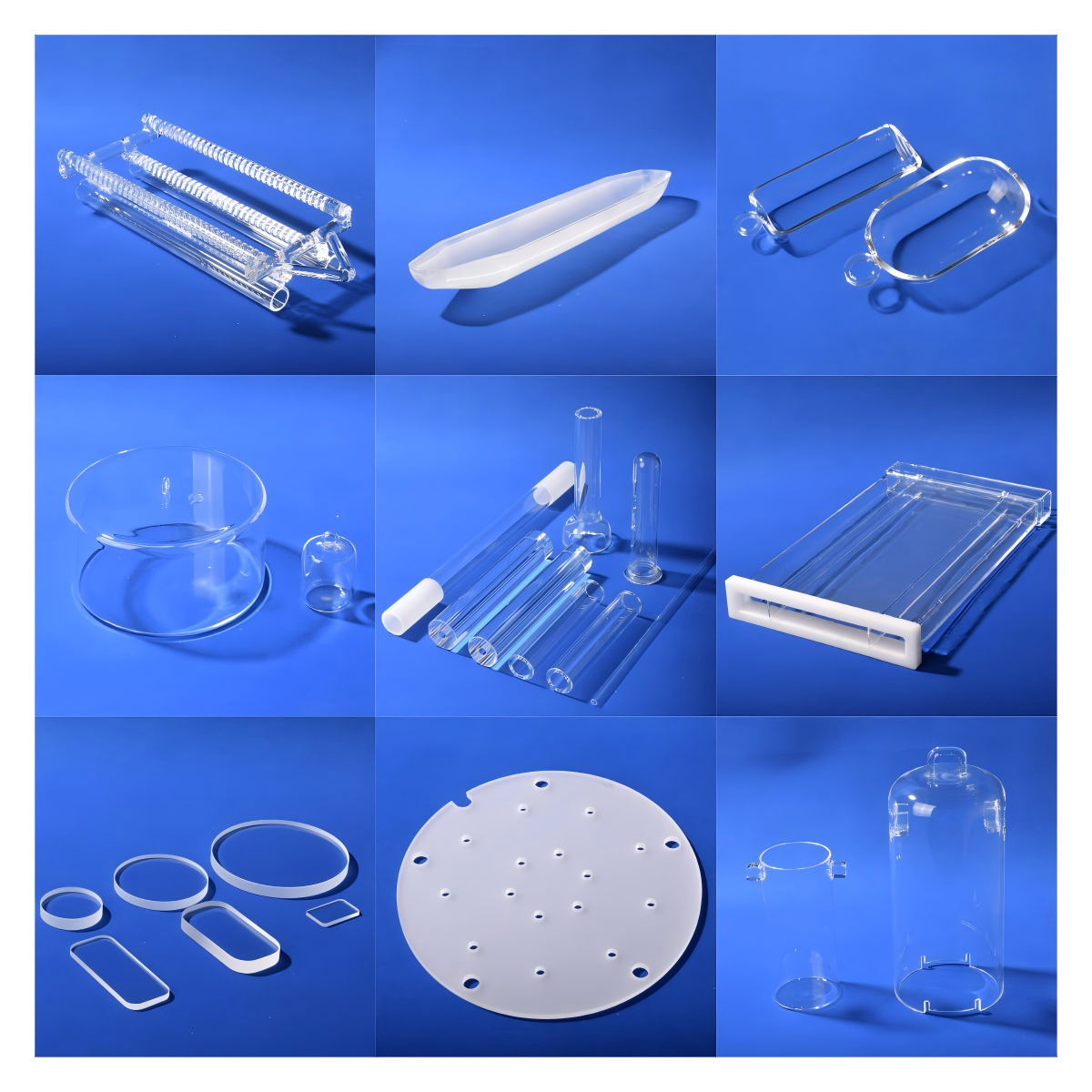

Technical Processing & Custom Capabilities
Precision Standards: Tolerance control (min: ±0.1mm), accurate dimension according to customers' request, backed by a complete after-service system.
Standard Specifications: Outer Diameter (OD) 1.3 - 800mm | Thickness: 0.6 - 15mm | Length: 5 - 3500mm
Further-Processing Available: Ends closing, sand blasting, polishing, bending, cutting, pinching, burning mouth, and custom shapes. For specialized components, please send technical drawings.
Applications: Widely used in semiconductors, metallurgy, chemical industry, electric light sources, photo-communication, medical equipment, scientific instruments, and PV sectors.
Raw Material Integrity: Formulated based on client specifications using premium high-purity quartz goods (including Momentive Performance Materials / formerly GE) subjected to strict quality control parameters.
Physical Properties
| Property Category | Parameter Item | Standard Value |
|---|---|---|
| Thermal Properties | Coefficient of Expansion (20℃ - 350℃) | 5.5 × 10⁻⁷ / ℃ |
| Thermal Conductivity (W/m ℃, 20℃) | 1.4 | |
| Specific Heat (J/kg, 20℃) | 670 | |
| Softening Point (viscosity) | 1730 ℃ | |
| Annealing Point | 1215 ℃ | |
| Deformation Temperature (long time heat retaining) | 1120 ℃ | |
| Electrical Properties | Electrical Resistivity (350℃, ohm-cm) | 7 × 10⁷ |
| Insulating Strength (20℃, KV/cm) | 250 - 400 | |
| Dielectric Constant | 3.7 | |
| Corrosion Resistance (Amount) | H₂SO₄ (Density 1.84, 2h, 20℃) | 1.4 × 10⁻⁸ g/cm² |
| HNO₃ (Density 1.4, 2h, 20℃) | 5 × 10⁻⁸ g/cm² | |
| HCl (Density 1.19, 2h, 20℃) | 15 × 10⁻⁸ g/cm² | |
| NaOH (1%, 2h, 110℃) | 166 × 10⁻⁶ g/cm² | |
| KOH (1%, 2h, 98℃) | 68 × 10⁻⁶ g/cm² | |
| Mechanical Properties | Density (g/cm³) | 2.2 |
| Compression Strength (N/mm²) | 1100 | |
| Bending Strength (N/mm²) | 67 | |
| Tension Strength (N/mm²) | 48 | |
| Micro Hardness (N/mm²) | 8600 - 9800 | |
| Moh's Hardness | 5.5 - 6.5 |
* For physical properties and custom metrics not listed in the table, please consult customer service directly.
Company Profile
Packing & Delivery
Quality Control & Inspection
We use three-coordinate detectors, height gauges, electronic digital calipers, and measuring projector stress gauges to meticulously inspect product appearance and dimensions.
Custom quality metrics are integrated strictly per customer requirement. All testing data and QC reports are fully archived and traceable. Operators undergo rigorous training to serve as qualified quality inspectors, and all metrology tools operate under strict Measurement Systems Analysis (MSA) control.
Packaging Specifications
The product itself is wrapped securely with bubble wrap, with internal gaps fully shock-buffered with high-density foam. The exterior is crated in solid wooden boxes compliant with international export specifications. Specialized packing solutions can be arranged upon request.
Customized Branding Service
Equipped with high-precision in-house laser engraving systems, we provide custom text, part coding, and trademark/logo engraving directly on the quartz component according to your requirements.
Frequently Asked Questions (FAQ)
Can I have a sample order before bulk procurement?
Yes, we welcome sample orders to test and verify the purity, dimensional tolerance, and overall product quality before full production.
What is your typical delivery and lead time?
Standard lead time is generally within 15 days upon receipt of the initial deposit, depending on customization details and batch volume.
Do you have a Minimum Order Quantity (MOQ) requirement?
We maintain a low MOQ policy. A single piece (1 pc) is available for sample inspection and quality evaluation.
How is an order processed through your factory?
First, communicate your specific requirements or application scenario. Second, our engineering team supplies CAD drawings and formal quotes. Third, you confirm specifications and deposit for production. Fourth, we process manufacturing, inspection, and dispatch.
What shipping methods are available and what is the transit time?
For small parcels or urgent samples, express carriers such as DHL, UPS, FedEx, or TNT are utilized, taking approximately 3-5 days. Air cargo and sea freight logistics are provided for bulk commercial consignments.
Can you customize quartz parts based on custom technical drawings?
Yes. We specialize in deep processing such as precision cutting, burning mouth, pinching, bending, and laser engraving based on your provided CAD drawings or engineering files.
