Round Bottom Quartz Distillation Flask
High-purity round-bottom vessel available in single or multi-neck versions. Withstands 1100°C direct heating with excellent wall consistency.
Send an Inquiry
0+
Years Dedicated Production
0%
Max SiO₂ Purity
0°C
Continuous Working Temp
0°C
Softening Point
0/5
Global Buyer Satisfaction
Semiconductor
Chemical Synthesis
Trace Analysis
Acid Purification
Pharmaceutical
Photovoltaic R&D
Technical Sourcing Architecture
Quartz Distillation Flask Sourcing Guide: How to Select High-Purity Fused Silica Boiling Vessels for Extreme Thermal & Ultra-Trace Chemical Distillation
In modern chemical engineering, semiconductor-grade reagent manufacturing, and clean analytical laboratories, traditional borosilicate glassware often introduces unacceptable operational ceilings. When processes require continuous thermal loading exceeding 500°C or demanding sub-ppb elemental cleanliness during corrosive acid purification, a Quartz Distillation Flask is no longer just an alternative; it is an absolute technical prerequisite.
Lianyungang Vulra Quartz Products Co., Ltd. produces premium-grade fused quartz distillation flasks engineered with virgin silica crystals (purity grades from 99.99% to 99.999% SiO₂). Located at No. 9, Dingxin Road, in the renowned Jiangsu Donghai Economic Development Zone, our factory taps into the world-leading Donghai quartz sand industrial cluster. We maintain tightly controlled chemical purification routes and automated flame-working lathe protocols that ensure high geometric precision, thermal stress relaxation, and zero heavy metal ionic leaching.
Whether conducting Sub-Boiling distillation for high-purity hydrofluoric, nitric, or hydrochloric acid preparation, executing high-temperature fractional hydrocarbon condensation, or running vapor-phase organometallic deposition experiments, selecting the proper vessel configuration determines both processing safety and analytical accuracy.
01
1100°C Thermal Reliability
Withstands severe continuous operating temperatures with an annealing point of 1150°C and a softening threshold of 1683°C.
02
Trace Metal Containment
Natural raw fused quartz feedstock is refined down to sub-ppm levels of aluminum, iron, sodium, and calcium.
03
Precision Lathe Welding
Full oxy-hydrogen torch lathe welding ensures leak-tight ground joint blending and high structural integrity under deep vacuum.
04
1-Piece Prototype Flexibility
We accept bespoke custom drawings starting at 1 piece, providing custom adapters, side-arms, and sensor thermowells.
Engineering Specifications
Material Advantages & Parametric Standards
Understanding the material envelope of fused silica versus ordinary laboratory glass is critical for engineering procurement directors. The table below illustrates standard baseline metrics for our fused quartz distillation flasks.
Technical Capability Sheet
| SiO₂ Purity Grade | 99.99% – 99.999% (Optical/Semiconductor) |
|---|---|
| Available Capacities | 50 mL, 100 mL, 250 mL, 500 mL, 1L, 2L, 5L, 10L, 20L |
| Neck Configurations | Single, Two-Neck, Three-Neck (Angled/Parallel), Four-Neck |
| Ground Joint Standards | 14/23, 19/26, 24/29, 29/32, 45/40 or Spherical S-Joints |
| Continuous Service Temp | ≈ 1100 °C |
| Short-Term Peak Temp | ≈ 1450 °C |
| Thermal Expansion (CTE) | 5.5 × 10⁻⁷ cm/cm·°C (20°C to 320°C) |
| Annealing & Strain Points | 1150 °C / 1070 °C |
| Softening Point | ≈ 1683 °C |
| Chemical Resistance | Inert to all acids except HF and H₃PO₄ above 300°C |
Vacuum Leak-Tight · Annealed
CE CertifiedPressure and thermal safe production standards
RoHS CompliantZero restricted heavy metals inside glass matrix
TÜV RheinlandSupplier factory qualification and quality audits
100% AnnealedFull polarized stress birefringence verification
Manufacturing Integrity
How We Craft Custom Quartz Distillation Flasks
Producing boiling vessels capable of surviving prolonged thermal strain and vacuum pressure demands precise hot and cold working technologies. At our Donghai facility, every distillation flask undergoes a multi-step quality pipeline.
Lathe Flame Blowing
Uniform spherical bottom blowing using automated oxy-hydrogen torches to achieve homogenous wall thickness.
Diamond Neck Trimming
High-speed diamond wheel slicing maintains exact neck lengths and square edge geometry for joint fusion.
Joint Lapping & Polishing
Standard taper ground joints (19/26, 24/29, 29/32) are lapped with micron abrasives for hermetic vacuum seals.
Thermal Stress Relief
Controlled electric furnace annealing at 1150°C systematically relieves hoop stresses at neck and side-arm weld zones.
Multi-Stage Acid Decontamination
Nitric and hydrofluoric acid surface etching removes micro-particulates, followed by 18.2 MΩ·cm DI water cleansing.
Polarimetric & Pressure QC
Cross-polarized birefringence checks ensure freedom from residual thermal strain before vacuum leak testing.
Strategic Sourcing Insights
Future Sourcing & Technology Trends in Quartz Distillation Systems
As advanced technology sectors scale, the demands placed on quartz boiling vessels are undergoing transformative shifts. Engineering and procurement teams must anticipate these evolving technical specifications.
TREND 01
Purity Demands Shifting from PPT to PPQ Levels
In sub-3nm semiconductor node manufacturing, wet-chemical cleaning requires ultra-pure electronic acids (UP-S and UP-SS grade HF, HNO₃, and H₂SO₄). Traditional quartz with single-digit ppm metallic impurities is being replaced by synthetic fused silica distillation flasks where Fe, Al, and Ti are strictly suppressed below sub-ppb and ppt limits to prevent bath cross-contamination.
TREND 02
Widespread Adoption of Sub-Boiling Distillation
Analytical chemistry labs are moving rapidly away from violent boiling toward infrared-heated surface sub-boiling distillation. Quartz distillation flasks now frequently incorporate internal infrared reflection skirts, quartz immersion thermocouple wells, and non-ebullient vapor extraction columns to eliminate boiling-induced aerosol droplet carryover.
TREND 03
Integrated Monolithic Fractionation Columns
Procurement teams increasingly request single-body monolithic units where Vigreux columns, secondary condenser jackets, and reflux splitters are flame-welded directly to the boiling flask. Eliminating mechanical ground joints prevents polymer grease contamination and stops ambient atmospheric moisture infiltration during ultra-dry distillations.
TREND 04
Reinforced Wall Geometry for Deep Vacuum Duty
Short-path molecular distillation under high vacuum (down to 10⁻³ mbar) at temperatures up to 800°C exposes large spherical flasks to substantial atmospheric compressive forces. The industry is trending toward precisely monitored 3.5mm to 6.0mm wall thickness designs engineered to eliminate catastrophic implosions caused by structural thermal buckling.
Engineered Recommendations
Recommended Quartz Distillation Flasks & Auxiliary Glassware
Review our core portfolio of fused quartz distillation vessels and interrelated analytical quartzware. Custom sizes, angles, and neck combinations are produced according to client CAD drawings.
Quartz Liebig & Graham Condenser
Mated condensers fabricated from pure quartz. Eliminates ionic contamination across distillate condensing zones during harsh solvent recovery.
Send an Inquiry
Quartz Thermowell & Sensor Wells
Closed-end protective sleeves inserted directly into the distillation vapor or liquid stream for thermocouples and infrared probes.
Send an Inquiry

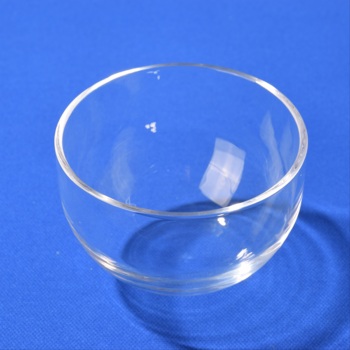

Refractory Quartz Evaporation Dish
Complementary fused quartz open dishes designed for concentrating distillates, calcination, and gravimetric ash determinations.
Send an Inquiry

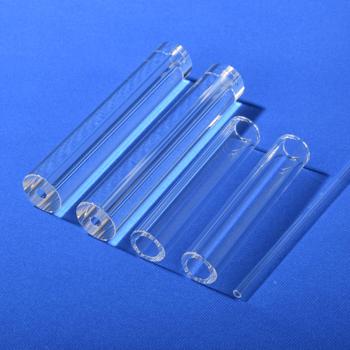

Quartz Fractionation Column Tubing
Heavy-wall fused quartz tubes cut and calibrated for packing with Raschig rings or custom indentations for multi-plate distillation.
Send an Inquiry
Bent Quartz Distillation Adapters
75° and 105° distillation adapters, Claisen connecting tubes, and cow receivers hand-blown and lathe welded to eliminate cold spots.
Send an Inquiry
Quartz Observation Sight Windows
Optically flat, polished quartz discs for sealing into distillation mantles and industrial boil-up reactors to inspect boiling dynamics.
Send an InquiryHave a Unique Flask Drawing?
Our engineers build bespoke distillation systems from your drawings or sketch files. Receive an engineering review and price quote within 24 hours.
Send an Inquiry Enterprise Strengths
Why Global Industrial Buyers Source from Vulra Quartz
Purchasing quartzware across borders requires proven engineering credibility, strict raw material authenticity, and reliable packaging. Here is how Lianyungang Vulra Quartz Products Co., Ltd. safeguards your procurement investment.
Donghai HubDirect source access to high-grade silica sand clusters
TÜV RheinlandVerified manufacturer status ensures audit integrity
ADV 01
Integrated Donghai Raw Sand Supply
Our factory location in Donghai County—the crystal center of China—gives us immediate sourcing stability for high-purity natural silica sand, insulating our global partners against raw material price volatility.
ADV 02
Complete In-House Processing Workflow
From initial tube resizing, precision glass lathe joining, hand tooling, to dedicated electric annealing and ultrasonic acid cleaning, all steps stay inside our facility to maintain end-to-end quality control.
ADV 03
Zero Compromise Annealing Protocol
Distillation flasks carry complex geometry at the neck-to-body junctions. We run thorough annealing programs to eliminate lingering hoop stress, preventing sudden cracks during extreme heating cycles.
ADV 04
Zero-Breakage Export Packaging
Every quartz distillation flask is wrapped with tailored shock-absorbing high-density polyethylene foam cushions and cradled within rugged multi-layer wooden crates engineered for transatlantic freight.
Buyer Knowledge Base
Quartz Distillation Flask FAQ
Comprehensive answers addressing common questions regarding quartz purity, thermal limits, ground joints, and international delivery.
Send an InquiryWhy should a laboratory choose a quartz distillation flask over borosilicate glass?
Standard borosilicate 3.3 laboratory glass softens around 560°C and contains substantial quantities of boron oxide (approx. 13%), sodium oxide (approx. 4%), and aluminum oxide (approx. 2%). Under concentrated boiling acids or aggressive reflux, these metals leach directly into the distillate, ruining ICP-MS baselines and semiconductor cleaning solutions. A fused quartz distillation flask features >99.99% pure silica, can run indefinitely at 1100°C without deformation, and releases virtually no measurable ionic impurities.
How resistant is a fused quartz flask to extreme thermal shock?
Fused silica boasts an exceptionally low thermal expansion coefficient of approximately 5.5 × 10⁻⁷ /°C—roughly one-sixth that of borosilicate glass. This allows a quartz distillation flask to withstand immediate, severe temperature swings. A vessel heated to 1000°C can be quenched in cold water without cracking, provided the wall thickness is uniform and free of residual mechanical stress.
What joint types and customizations can Lianyungang Vulra Quartz Products Co., Ltd. manufacture?
We craft standard tapered ground joints (14/23, 19/26, 24/29, 29/32, 45/40), spherical ball-and-socket joints (S13, S19, S35), flat optical flanges with PTFE gasket seats, and screw threads. We produce single-neck, multi-neck (up to 5 necks), side-distillation takeoff arms, integrated Vigreux indentations, and quartz-sheathed thermometer pockets from custom drawings starting at 1 piece.
Can these quartz flasks safely operate under deep vacuum conditions?
Yes. Our round-bottom geometries are flame-blown to maintain uniform wall thickness (typically 2.5 mm to 5.0 mm depending on total capacity). Because round spheres distribute external atmospheric pressure evenly, our flasks perform reliably under fine vacuums down to 10⁻³ mbar or higher when paired with precision-ground joint seals and appropriate operating procedures.
How should a quartz distillation flask be cleaned and maintained to prevent devitrification?
Quartz devitrification (recrystallization from amorphous silica into cristobalite) occurs above 1000°C in the presence of surface contamination—particularly alkali ions (sodium, potassium, finger oils). Always rinse the flask with high-purity ethanol or dilute nitric acid, followed by deionized water. Avoid touching heating surfaces with bare hands before firing, and never allow alkaline solutions (pH > 9) to boil dry at elevated temperatures.
How does Vulra Quartz guarantee safe international transit for delicate quartzware?
We employ engineered multi-tier packaging. Individual flasks are bubble-wrapped, nested within high-density expanded polyethylene (EPE) custom cutouts, boxed in double-wall corrugated cartons, and then enclosed in fumigated solid wooden crates for export dispatch. We provide replacement coverage against transit damage if any breakage occurs during certified transport.
Ready to Order or Request a Custom Quartz Distillation Flask Quotation?
Reach out directly to the production engineers at Lianyungang Vulra Quartz Products Co., Ltd. Send your CAD dimensions or process parameters today.
