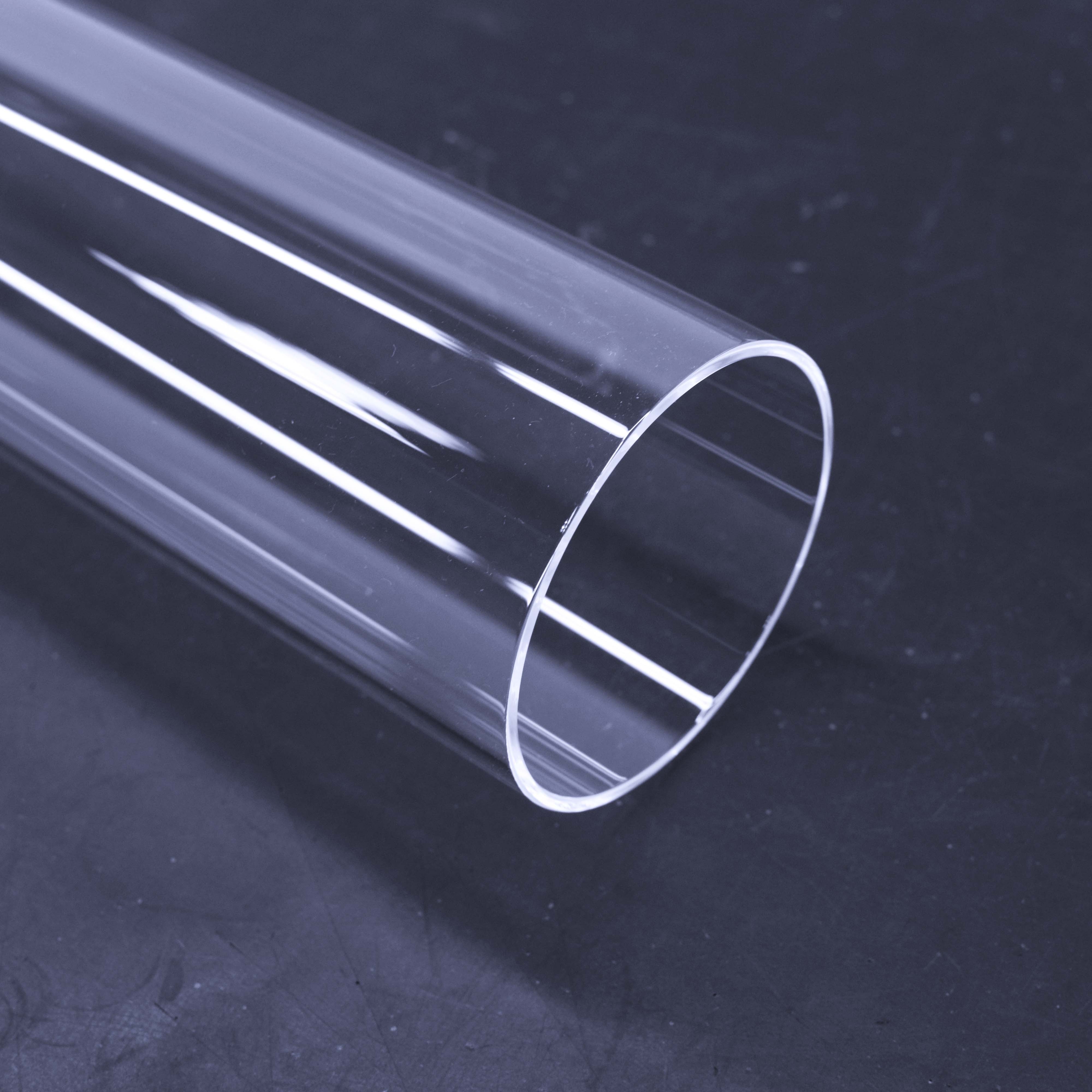

Factory Supply Optical Quartz Sapphire Tubes High Temperature Resistant UV Glass Test Pipe Powder Sintering Welding Bending
Product Description
Product Description
SJ QUARTZ Key Selling Points
Source Factory | Customizable | Export Quality | Multi-Scene
1. Ultra-High Purity & Stable Chemistry
99.99% SiO₂ | Acid/Alkali Resistant | No Harmful Leaching
For: Lab Ware, Semiconductor Eqpt, Food-Contact Parts
For: Lab Ware, Semiconductor Eqpt, Food-Contact Parts
2. High Temp & Thermal Shock Resistant
1730℃ Melting Point | 1100℃ Long-Term Use | No Cracking
For: High-Temp Furnace, Heater Sheaths, Quartz Oil Burners
For: High-Temp Furnace, Heater Sheaths, Quartz Oil Burners
3. Superior UV & Optical Transmittance
1000x UV Transmittance vs Glass | Deep UV Compatible
For: UV Sterilizers, Optical/Laser Eqpt, PV Parts
For: UV Sterilizers, Optical/Laser Eqpt, PV Parts
4. Excellent Electrical Insulation
Stable Insulation (Room-High Temp) | Arc Resistant
For: High-Voltage Lamps, Vacuum Tubes, Semiconductor ICs
For: High-Voltage Lamps, Vacuum Tubes, Semiconductor ICs
5. High Customizability
Precision Cutting/Engraving | Custom Size/Logo
For: B2B Custom Orders, Branded Components
For: B2B Custom Orders, Branded Components
6. Safe & Eco-Friendly
No Heavy Metals/Toxins | Meet Int'l Safety Standards
For: Tableware, Baby Accessories, Medical Ware
For: Tableware, Baby Accessories, Medical Ware
Material: Quartz Glass
Purity: More than 99.99%
Characteristic:
1. High quality competitive price and elegant appearance
2. High temperature and corrosion resisting
3. No bubble and no processing trade
4. Long time to use
Efforts: 1. Tolerance control (min: +/-0.1) | 2. Accurate dimension according to customers' request | 3. Complete after-service system
Specification: OD 1.3-800mm | Thickness: 0.6-15mm | Length: 5-3500mm
Further-processing: Ends closing, sand blasting, polishing, bending, cutting, pinching, burning mouth and so on. For the special one, please kindly send me the drawing.
Application: Widely used in the field of semiconductor, metallurgy, chemical industry, electric light source, photo-communication, medical equipment, scientific instruments and so on.
Physical Properties
| Thermal Properties | Coefficient of Expansion (20℃-350℃) | 5.5*10⁻⁷/℃ |
| Thermal Conductivity (W/m℃, 20℃) | 1.4 | |
| Specific Heat (J/kg, 20℃) | 670 | |
| Softening Point (viscosity) | 1730℃ | |
| Annealing Point | 1215℃ | |
| Deformation Temperature (long time heat retaining) | 1120℃ | |
| Electrical Properties | Electrical Resistivity (350℃, omh-cm) | 7*10⁷ |
| Insulating Strength (20℃, KV/cm) | 250-400 | |
| Dielectric Constant | 3.7 | |
| Corrosion Amount | H₂SO₄ (Density 1.84, 2h, 20℃, g/cm²) | 1.4*10⁻⁸ |
| HNO₃ (Density 1.4, 2h, 20℃, g/cm²) | 5*10⁻⁸ | |
| HCl (Density 1.19, 2h, 20℃, g/cm²) | 15*10⁻⁸ | |
| NaOH (1%, 2h, 110℃, g/cm²) | 166*10⁻⁶ | |
| KOH (1%, 2h, 98℃, g/cm²) | 68*10⁻⁶ | |
| Mechanical Properties | Density g/cm³ | 2.2 |
| Compression Strength N/mm² | 1100 | |
| Bending Strength N/mm² | 67 | |
| Tension Strength N/mm² | 48 | |
| Micro Hardness N/mm² | 8600-9800 | |
| Moh's Hardness | 5.5-6.5 |
* For properties not mentioned in the table, please consult customer service
Company Profile
Packing & Delivery
Quality Control

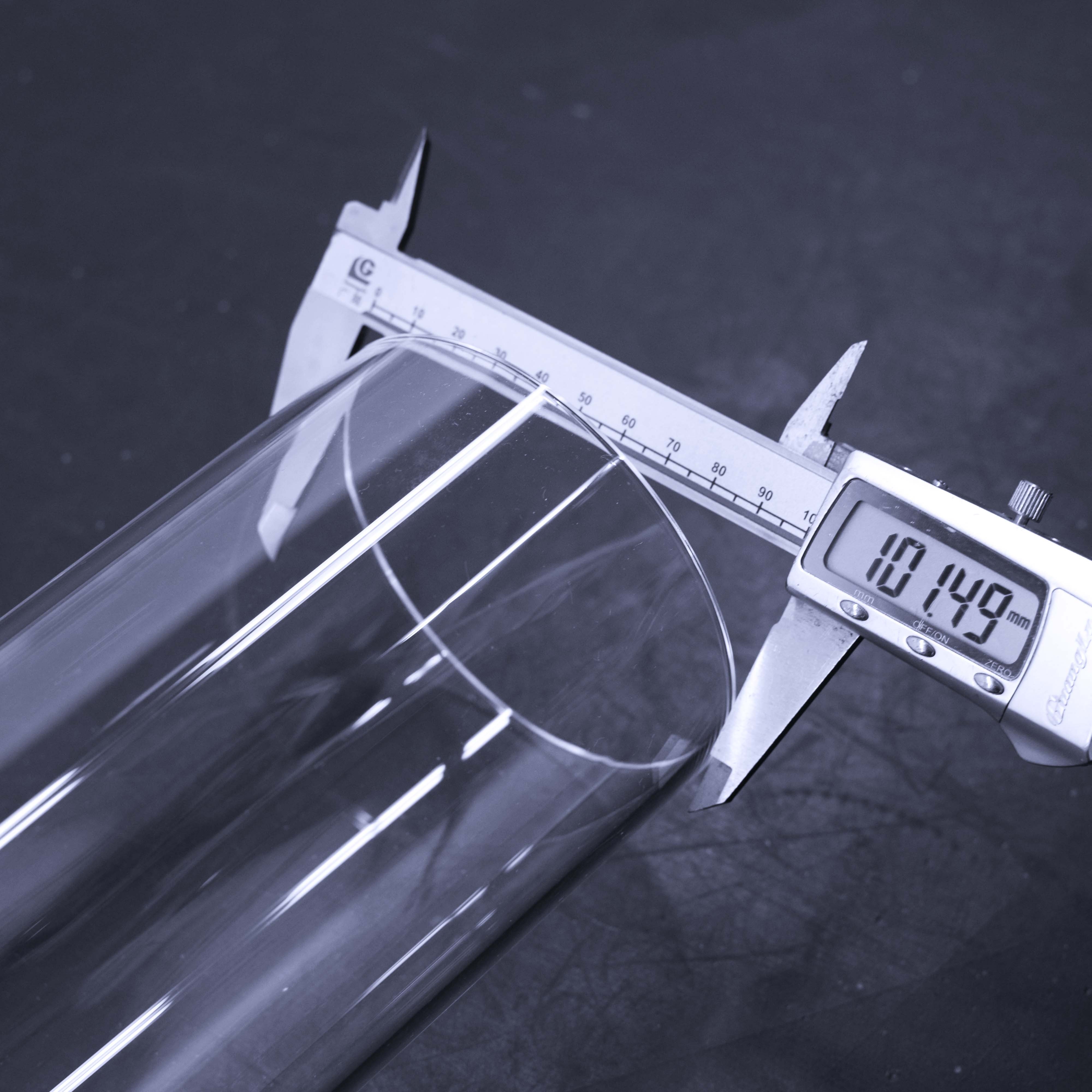

Using three coordinates detector, height gauge electronic digital calipers, measuring projector stress gauge to inspect the products' appearance and size. As well, according to customer requirements. All quality control date and report can be found. After training, all operators could be eligible quality inspectors. The measuring tools have under the MSA control.
Packaging specifications
The product itself is wrapped in bubble wrap, the gaps are filled with foam, and the exterior is packaged in a wooden box that meets export specifications. Please inform us if you have any special requirements.
Customized service
We have our own laser engraving machine, which can engrave trademarks, texts, etc. on the product itself according to your requirements.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A: Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A: DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
Q6. Do you provide custom fabrication based on drawings?
A: Yes, we accept customization according to different diameter, thickness, length, or by sending your drawing directly to us.
