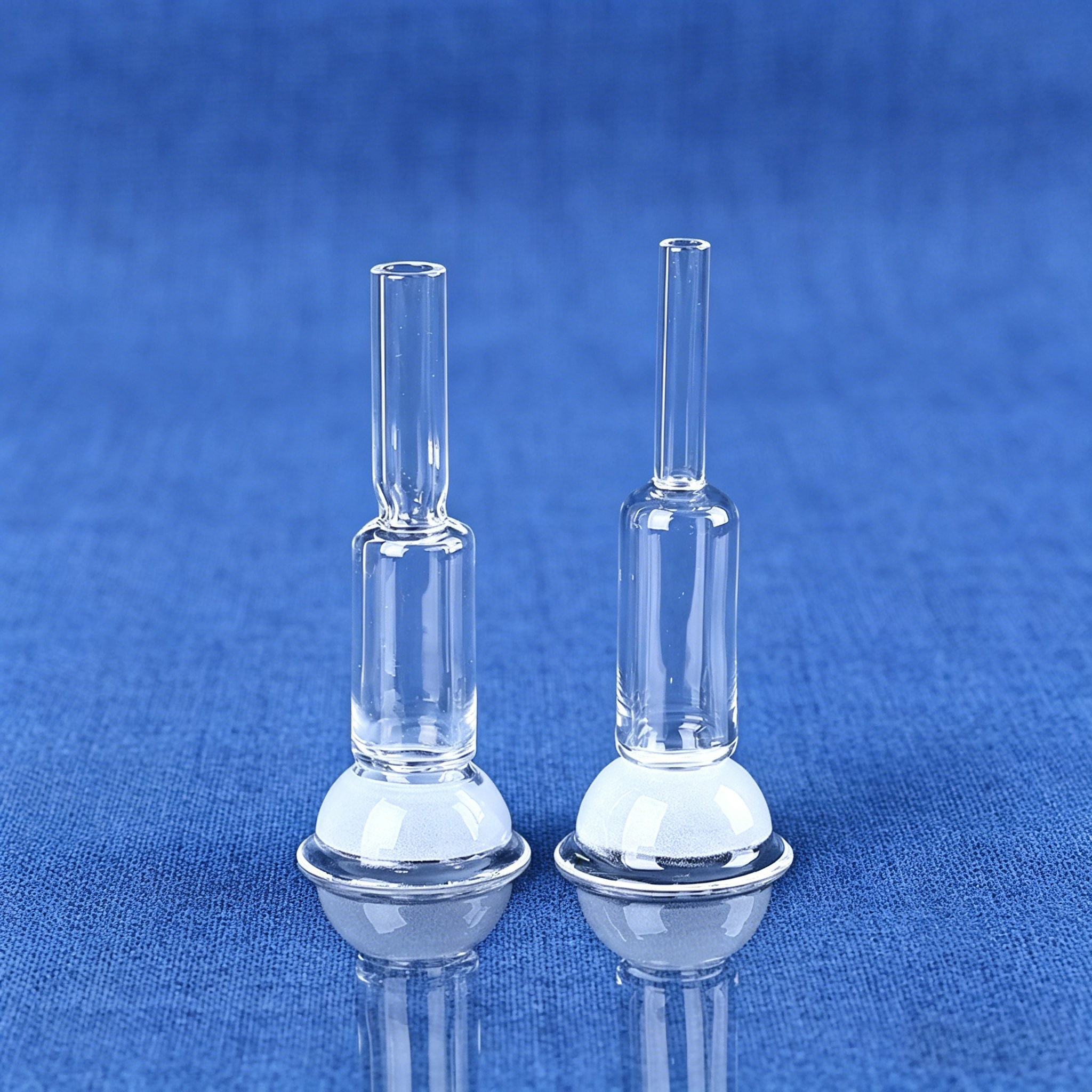

Custom High Purity Quartz C-shaped Small-sized BET Tube
Quartz Glass Tube Plugging Rod Heating Test Tube Boat

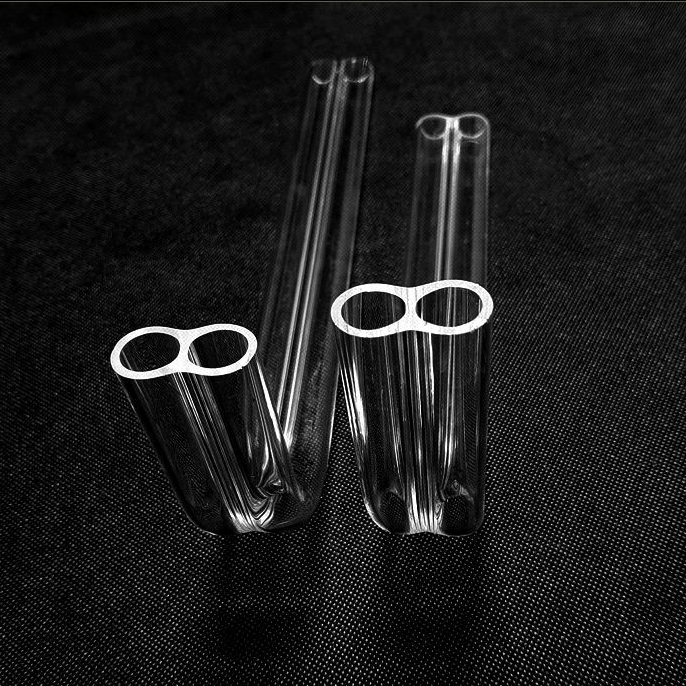

High-Temperature 99.999% Fused Quartz Double-Tube Elbow

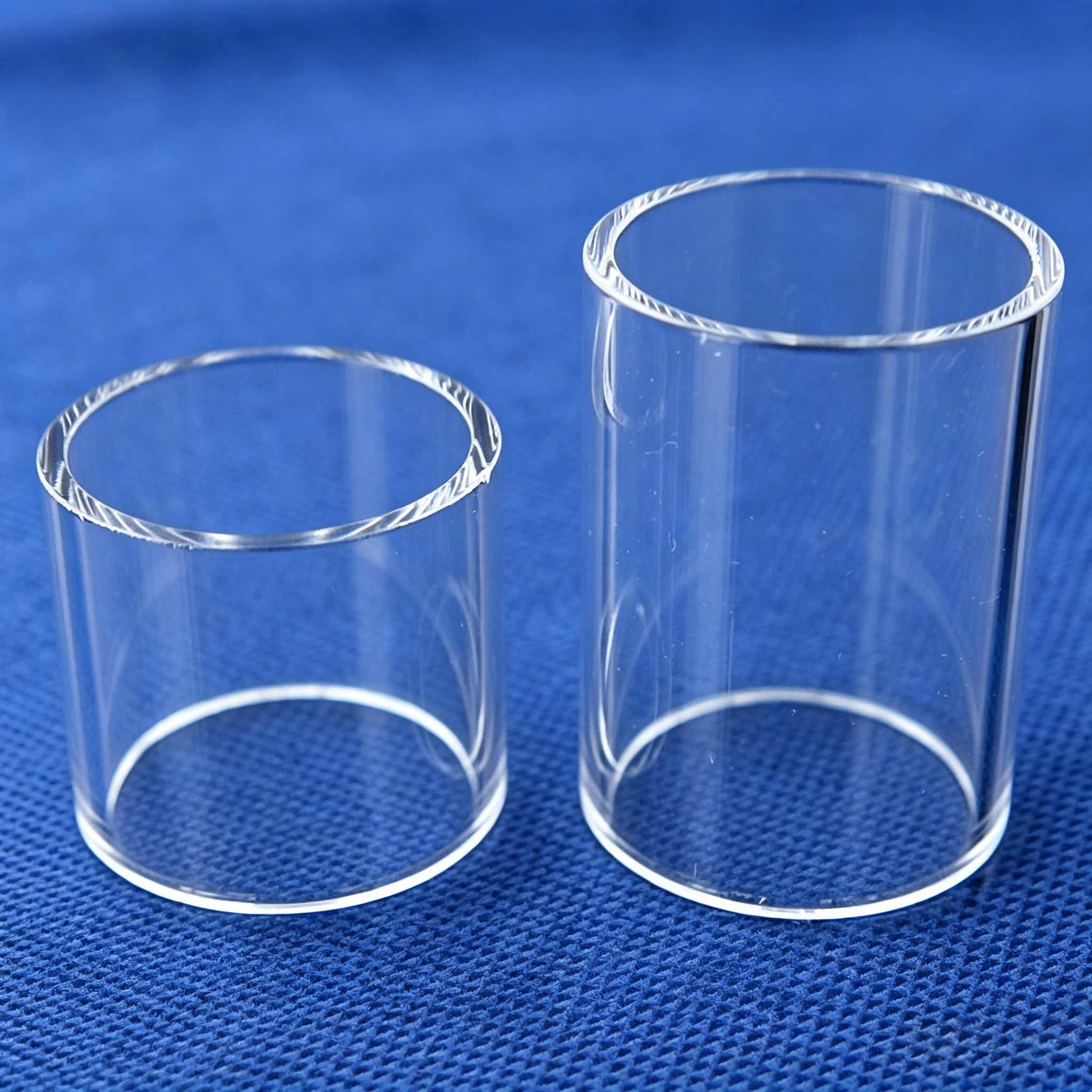

Custom High Temperature Corrosion Resistant Clear Quartz Pipe
High-Temperature Corrosion-Resistant Quartz Flow Splitting Bottle

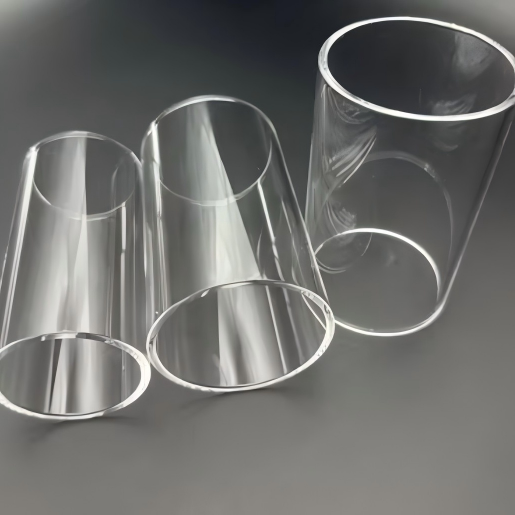

High Temperature Ozone Free One End Closed Quartz Tube

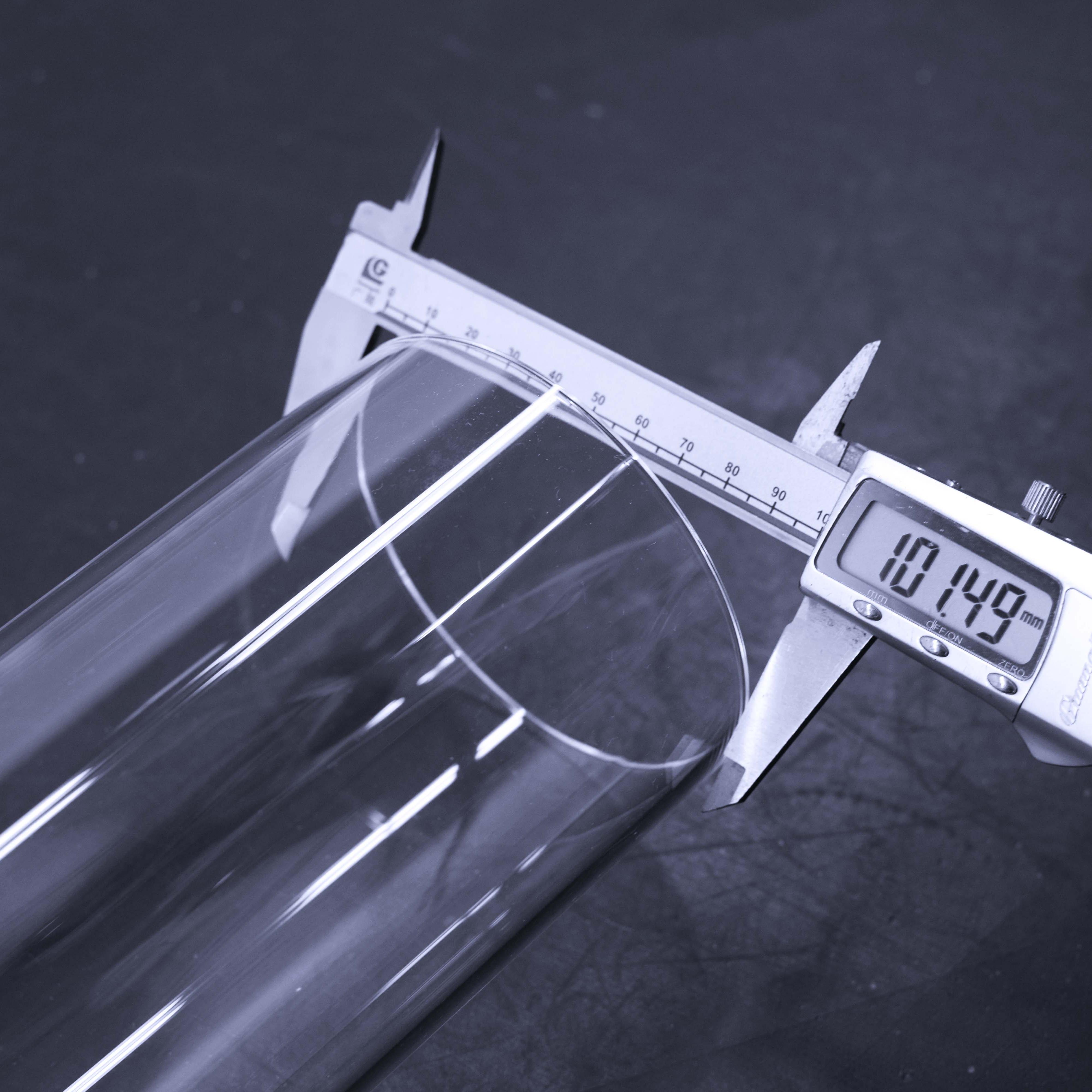

Customizable High Purity Clear Quartz Glass Tube
Engineering High-Purity Semiconductor Quartz Rings for Plasma Etch and CVD Processes
An in-depth analysis on thermal stress management, micro-contamination control, and plasma erosion kinetics in modern wafer processing tools.
Role of Quartz Rings in Plasma Etch Chambers
In reactive ion etching (RIE) and inductively coupled plasma (ICP) reactors, semiconductor quartz focus rings play a dual critical role: shielding chamber components from reactive fluorinated/chlorinated gas plasmas (such as CF₄, SF₆, and NF₃) and shaping the electric field across the wafer edge. High-purity quartz rings maintain uniform plasma sheath geometry, preventing edge-yield degradation during sub-micron patterning.
Thermal Stability in Epitaxial & Diffusion Processes
Thermal processing equipment operating at temperatures exceeding 1000°C requires silica glassware with exceptional devitrifcation resistance and ultra-low thermal expansion ($\alpha \approx 5.5 \times 10^{-7} /^\circ\text{C}$). Our custom fused quartz rings prevent thermal shock fractures during rapid thermal annealing (RTA) and chemical vapor deposition (CVD), maintaining dimensional integrity over thousands of operational hours.
Impurity Analysis & Material Specifications (5N Grade Fused Quartz)
| Trace Metallic Element | Typical Level (PPM) | Impact on Semiconductor Process | Vulra Quartz Tolerance Standard |
|---|---|---|---|
| Aluminum (Al) | < 5.0 ppm | Lattice dislocation, mobility shift in gates | ≤ 3.0 ppm (Ultra-Low) |
| Iron (Fe) | < 0.2 ppm | Deep-level metallic trap generation | ≤ 0.08 ppm |
| Sodium (Na) | < 0.1 ppm | Mobile ion contamination causing Vth drift | ≤ 0.05 ppm (Semiconductor Grade) |
| Hydroxyl (OH⁻) | < 30 ppm | High-temperature sagging & viscosity decrease | < 5 ppm (Infrared / Low-OH Grade) |
| Density & Softening Point | 2.20 g/cm³ / 1683°C | Structural stability under heavy vacuum thermal load | Fully Annealed / Zero Stress Double-Refraction |
Supporting Ipoh's Growing Semiconductor & Advanced Packaging Ecosystem
Connecting the Northern Corridor Economic Region (NCER) to global supply chains with fast, reliable, and high-precision quartz components.
OSAT & Advanced Packaging in Jelapang & Silibin
Ipoh's industrial estates, including Jelapang and Silibin, host vital Outsourced Semiconductor Assembly and Test (OSAT) facilities. Fused quartz rings and wafer carriers are heavily used in high-density interconnect (HDI) substrate processing, epoxy curing, reflow soldering, and wafer-level chip-scale packaging (WLCSP) cleaning lines.
MEMS & Automotive Electronics in Bemban & Batu Gajah
Perak's automotive semiconductor supply chain requires strict reliability. Our precision-ground quartz rings serve high-temperature sensor calibration, MEMS etching steps, and optical window sealings where chemical inertness to aggressive acidic etching baths (HF/HNO₃) is strictly mandatory.
High-Frequency Solar & Power Module Production
With expanded green technology initiatives along the Kinta Valley corridor, high-purity quartz furnace tubes, boat supports, and outer ring shields facilitate high-yield diffusion steps for power semiconductors, SiC (Silicon Carbide), and solar PV cells.
Malaysia's National Semiconductor Strategy (NSS) & The Ipoh Advantage
How localized sourcing of custom quartz tooling strengthens supply chain resilience across Perak and Northern Malaysia.
1. Upstream Expansion Beyond Penang to Perak Corridor
As Penang's Bayan Lepas and Batu Kawan industrial parks experience land tightening, the expansion spillover into Perak (Ipoh, Kerian Integrated Green Industrial Park) is accelerating. Localized equipment refurbishers and cleanroom operators require quick-turnaround quartz ring fabricators that can manufacture directly from CAD drawings without long lead-time overseas delays.
2. Transition to 2.5D / 3D Heterogeneous Integration
The global shift toward chiplets and 3D stacking demands tighter geometric tolerances ($\pm 0.01\text{ mm}$) and mirror-polished surface finishes ($Ra < 0.2\,\mu\text{m}$) on quartz carrier rings. Reduced surface micro-cracking minimizes particulate shedding, protecting sensitive die surfaces from micro-contamination.
Why Ipoh Semiconductor Buyers Partner with Vulra Quartz
Direct manufacturing capability from Donghai—the World's Crystal Capital—backed by third-party TÜV Rheinland verification.
TÜV Rheinland Assessed
On-site verified factory facility, confirming integrated hot flame working, CNC cold machining, and strict quality control.
Drawing-Based OEM/ODM
Engineering review of STEP/DWG drawings within 24 hours. Prototypes from 1 piece to validate thermal fit before mass production.
Donghai Raw Material Hub
Located at the core source of high-purity natural crystal sand, ensuring continuous chemical stability and competitive factory pricing.
Export Packaging & Fast Freight
Vacuum-sealed cleanroom packaging with custom foam and reinforced wooden crating tailored for air freight directly to Sultan Azlan Shah Airport or Penang Port.
Frequently Asked Questions by Ipoh & Malaysian Buyers
Addressing thermal thresholds, import procedures, custom specs, and quality assurances.
What continuous operating temperature can your quartz rings handle in diffusion furnaces?
Our high-purity fused quartz rings withstand continuous operating temperatures up to 1100°C and short-term peak thermal spikes up to 1450°C. The softening point is approximately 1683°C. For long-duration vacuum processes above 1150°C, we recommend specialized heavy-wall or synthetic fused silica configurations to prevent thermal sagging.
How do you ship quartz glassware to Ipoh, Perak without risk of breakage?
Fragile quartzware is packed under strict export standards: acid washed, double vacuum poly-sealed in cleanroom conditions, nested inside multi-layer shock-absorbing EVA foam, and encased in reinforced plywood cases. Shipments to Ipoh arrive via air freight (Sultan Azlan Shah Airport or KLIA) or sea freight via Penang Port with full transit insurance.
Can you manufacture custom quartz focus rings based on OEM tool drawings (e.g., TEL, Applied Materials, Lam Research)?
Yes. We specialize in custom OEM/ODM drawing fabrication. You can submit 2D PDF drawings or 3D STEP files detailing outer/inner diameters, stepped grooves, pin holes, and edge chamfers. Our engineering team conducts a thorough tolerance risk evaluation prior to CNC machining.
What is the typical Minimum Order Quantity (MOQ) for custom quartz prototypes?
We support prototype development with a Minimum Order Quantity starting from just 1 piece for custom quartz rings, plates, boats, and crucibles. This enables local Ipoh process engineers to test fit and thermal performance before releasing full production volumes.
What certifications and compliance documents accompany shipments to Malaysia?
Every shipment can be accompanied by Material Certificates of Analysis (COA) specifying SiO₂ purity, trace element spectral analysis, Certificate of Conformance (COC), and RoHS / CE compliance documentation required for Malaysian customs and corporate quality audits.
How does natural fused quartz compare with synthetic fused silica for optical & etch applications?
Natural fused quartz (99.99%+ SiO₂) offers excellent mechanical, thermal, and dielectric performance for standard furnace tubes and etch rings at an optimized cost. Synthetic fused silica is synthesized from chemical precursors, offering virtually zero metallic impurities and superior deep-UV transmission, suitable for ultra-sensitive photolithography optics.
