Core Thermal Processing Product Line
Precision Fused Quartz Components for Västerås High-Temp Systems
Engineered for high hydrostatic resistance, minimal thermal expansion (0.54 × 10⁻⁶/K), and pristine chemical purity in extreme vacuum and oxidative environments.
99.999%
Max Purity Grade (SiO₂)
1683°C
Softening Point Threshold
800mm
Max Diameter Machining
±0.05mm
Precision CNC Tolerance
1PC
Custom Drawing Prototype
Technical Whitepaper · Material Science
High-Purity Fused Silica: Structural Integrity at 1100°C–1450°C
In high-power electrical insulation, photovoltaic crystallizers, and wide-bandgap (WBG) epitaxy furnaces across Västerås, component longevity depends on quartz crystallization kinetics, hydroxyl radical [OH⁻] concentrations, and thermal expansion dynamics.
Thermal Shock & Viscosity Kinetics

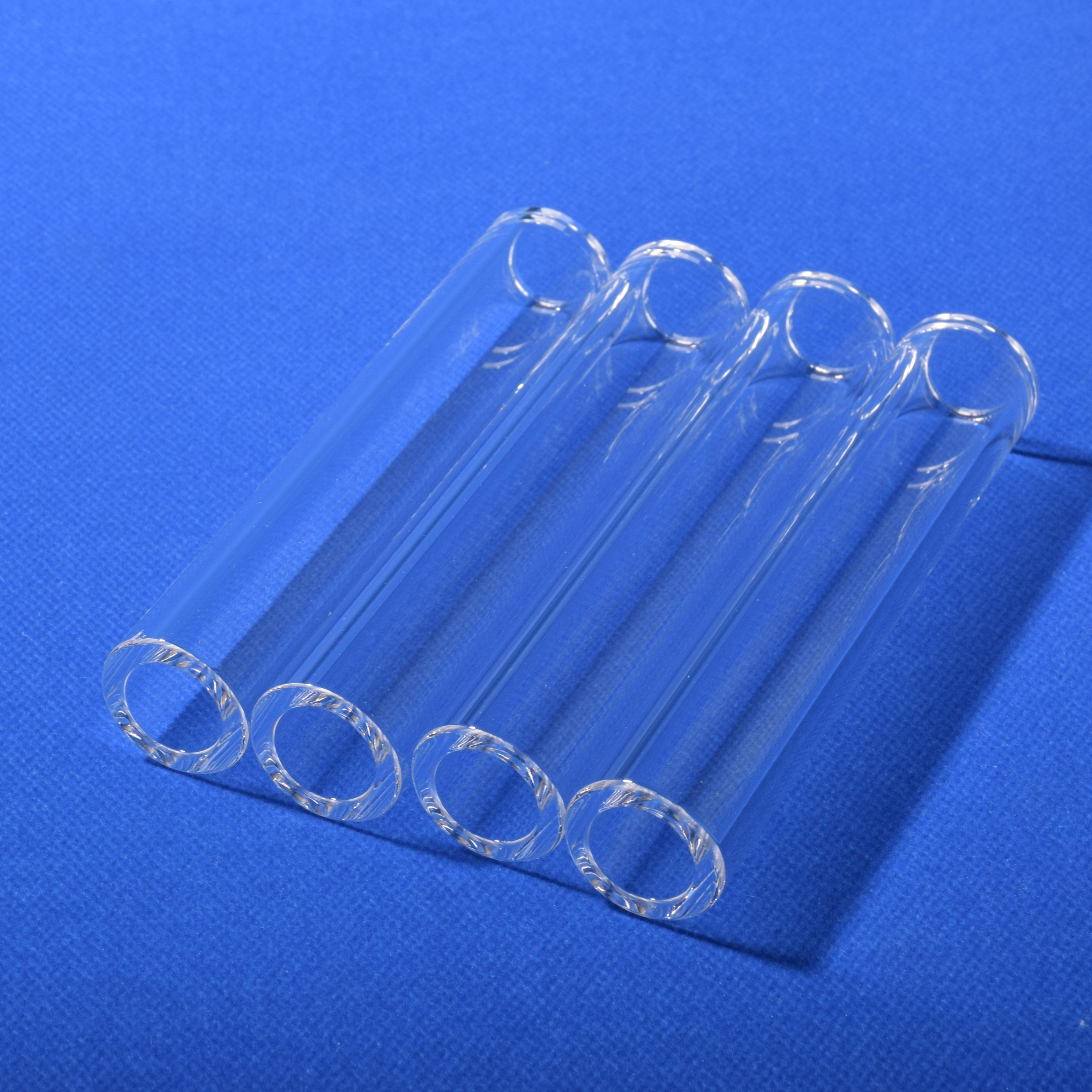

Large fused quartz tubes exhibit an exceptionally low linear coefficient of thermal expansion ($\alpha = 5.5 \times 10^{-7}/\text{K}$ between 20°C and 1000°C). This allows instantaneous quenching from 1100°C directly into water without microfracturing or structural failure.
- Strain Point: 1075°C | Annealing Point: 1180°C
- Controlled OH content (<20 ppm standard, <5 ppm optional)
- High devitrification threshold against alkali migration
Trace Metal Impurities < 15 ppm
Manufactured from selected natural Donghai crystal quartz gravel via continuous electric fusion. Metallic element contamination (Fe, Cu, Ni, Cr) is strictly suppressed to preserve dielectric resistance and prevent charge-trapping in sensitive process runs.
- Iron (Fe) ≤ 0.2 ppm | Aluminum (Al) ≤ 12.0 ppm
- Alkali (Na, K, Li) combined ≤ 1.5 ppm
- Clean-room acid leaching (HF/HNO₃) prior to crating
Heavy-Wall Hydrostatic Stability
For large-bore process tubes (OD 150 mm to 800 mm) subjected to internal negative pressure or violent carrier gas fluctuations, wall thickness uniformity and polariscope-verified annealing prevent catastrophic implosion.
- Tensile strength ≈ 48 N/mm² (MPa)
- Compressive yield strength > 1100 N/mm²
- Ground and fire-polished end bevels & flanges
| Material Property | Vulra Semi-Grade Fused Quartz | Standard Borosilicate Glass | Dense Alumina Ceramic (99.5% Al₂O₃) | Significance for Västerås High-Temp Systems |
|---|---|---|---|---|
| Continuous Max Temperature | 1100 °C (Short peak 1450 °C) | 450 °C | 1600 °C | Enables SiC calcination and battery anode sintering without glass sagging. |
| Coeff. of Thermal Expansion (CTE) | 5.5 × 10⁻⁷ / °C | 33 × 10⁻⁷ / °C | 80 × 10⁻⁷ / °C | Zero cracking during rapid thermal cycling or emergency liquid cooling cycles. |
| Dielectric Strength (20°C, 1MHz) | 25 – 40 kV/mm | 10 – 15 kV/mm | 15 – 20 kV/mm | Superior HVDC electrical isolation in high-voltage test setups. |
| Optical Transmittance (UV – NIR) | > 92% (220nm – 2500nm) | Negligible below 320nm | 0% (Opaque) | Direct pyrometric temperature monitoring and photolytic reaction tracking. |
| Chemical Inertness against HF/H₃PO₄ | Hydrofluoric attack only | Attacked by basic alkaline | Attacked by slag at high heat | Stable under concentrated acid leaching, vacuum halogen, and purge gases. |
Västerås Industry Integration
Specialized Quartzware Applications Across the Västmanland Industrial Basin
As the Nordic capital of electrification and power automation, Västerås hosts premier engineering complexes spanning Finnslätten, Kopparlunden, and Bäckby. Our oversized quartz tubes and custom furnace ware match the stringent quality thresholds of localized advanced manufacturing.
HVDC & Power Grid Infrastructure
Applied in high-power semiconductor testing, thyristor valve development, and vacuum furnace housings for switchgear and converter transformer components engineered around the Västerås power systems cluster.
- High dielectric breakdown resistance (>25 kV/mm)
- Precision negative-pressure vacuum sealing
- Custom welded flanges for SF₆ and inert gas handling
Battery Pilot Lines & Active Materials
Crucial for continuous calcination, solid-state electrolyte synthesis, and graphite/silicon-composite anode heat treatment where iron and metallic contaminants must be kept below 0.5 ppm.
- Non-reactive inert reaction vessels up to Ø800 mm
- Semi-circular tube boats with ground flat runners
- Gas distributor lances with micro-drilled perforations
Nuclear Fuel & Refractory Research
Supporting nuclear fuel assembly R&D and refractory metallurgical sintering in the Västmanland region. High purity fused silica prevents pellet carburization and handles extreme gradient heating.
- Softening resistance up to 1683°C peak temperature
- Strict geometric ovality and straightness (< 1.0 mm/m)
- Spectrophotometer-certified optical inspection
Academic & Industrial Clean Tech (MDU)
Supplying laboratory-scale CVD, XRD sample carriers, and photocatalytic closed electrolytic cells for researchers at Mälardalen University (MDU) and associated industrial incubators.
- Deep UV-transmittance (185nm – 260nm transmission)
- Micro-milled optical observation discs and cuvettes
- Prototype-friendly single piece custom fabrication
Market Trends & Regional Growth
Västerås: Accelerating the Nordic Green Electrification Boom
Strategic structural shifts across Central Sweden are transforming quartz component sourcing requirements.
Upscaling to Oversized Process Chambers
As green energy R&D accelerates at Finnslätten, engineering demand has shifted from small bench-scale quartz (Ø50–100 mm) to large-bore reaction chambers (Ø300 mm to Ø800 mm). These larger cross-sections enable simultaneous processing of multi-wafer cassettes and scaled battery precursor batches without hot-spot contamination.
Stringent Trace Impurity & REACH Compliance
Swedish environmental protection agency regulations (Naturvårdsverket) and strict corporate ESG frameworks mandate that all quartz glassware imports are RoHS certified, REACH SVHC compliant, and manufactured with closed-loop acid leaching to eliminate volatile solvent residue.
Supply Chain Diversification & Buffer Inventories
Long cycle times from local distributors in Scandinavia have prompted plant managers in Västerås to establish factory-direct manufacturing partnerships with Donghai producers, utilizing air express for mission-critical prototypes and optimized sea freight to Gothenburg for recurring production runs.
Verified Direct Manufacturer
Drawing-Based OEM/ODM Backed by TÜV Rheinland Verification
Headquartered at No. 9 Dingxin Road, Jiangsu Donghai Economic Development Zone—the world’s recognized crystal silica trading hub—Vulra Quartz integrates raw silica refinement, automated tube drawing, precision glassblowing, and laser-guided cold cutting under one audited management system.
TÜV Rheinland Verified
On-site plant capacity audit
CE Certified Lines
Complies with EU directives
RoHS Compliant
Zero hazardous elements
Drawing-Based OEM
CAD/STEP review in 24 hrs
Procurement Knowledge Base
Frequently Asked Questions: Sourcing Quartzware for Sweden
Practical technical and logistical answers for plant managers, process engineers, and sourcing specialists in Västerås and greater Stockholm-Mälardalen.
What dimensional tolerances can be guaranteed on large tubes (>200 mm OD)?
For standard hot-drawn large-bore tubes, we achieve outer diameter (OD) tolerances of ±0.5 mm to ±1.5 mm depending on wall gauge. When specialized precision is required—such as for vacuum-flange connections or O-ring assemblies—our cold-machining CNC workshop performs diamond cylindrical grinding, achieving OD tolerances of ±0.05 mm and circularity (out-of-roundness) within 0.10 mm.
How do you prevent breakage during international transit to Sweden?
Export quartzware requires certified multi-layer protective packaging. Every large tube is individually bagged, suspended in custom high-density polyethylene (EPE) shock-absorber blocks, and nested within a rigid inner carton. These are then enclosed in ISPM-15 heat-treated, fumigated plywood export crates reinforced with structural corner battens. We maintain a verified shipping damage rate of under 0.2% on long-haul freight to Swedish ports and Stockholm-Arlanda (ARN) air cargo facilities.
Can you provide material certificates for cleanroom audit compliance?
Yes. Every production batch is supplied with an official Certificate of Analysis (COA) containing ICP-OES/ICP-MS elemental impurity profiles (quantifying trace Fe, Al, Cu, Na, K, Li down to ppb levels). We also furnish RoHS, REACH declaration certificates, and our TÜV Rheinland factory audit documentation required by quality management departments in Västerås.
What is the operational difference between Ozone-Free and Clear Fused Quartz?
Standard clear fused quartz transmits ultraviolet radiation down to roughly 185 nm, interacting with atmospheric oxygen to generate ozone ($O_3$). Ozone-free quartz is specifically doped with trace titanium dioxide ($TiO_2$) to create an optical cutoff at ~220 nm, absorbing the 185 nm band entirely while preserving full transmission across the 254 nm germicidal and visual spectrum. This eliminates toxic gas buildup in pilot lines without requiring dedicated fume ventilation.
What Incoterms and delivery options are available for Västerås plants?
We regularly supply Swedish industrial buyers under DAP (Delivered at Place) or DDP (Delivered Duty Paid) directly to company receiving docks across Västerås, Stockholm, and Gothenburg. We manage Chinese export clearance, air/ocean carriage, Swedish customs clearance via Tullverket, and local freight forwarding via Schenker or DHL Express.
Can you manufacture one-off replacement quartz tubes from broken samples?
Yes. If legacy engineering drawings are unavailable for foreign-made furnaces or discontinued reactors, our engineering department can work from high-resolution caliper measurements, hand sketches, or partial remnants. We generate a preliminary CAD drawing for your technical sign-off prior to cold machining or flame lathe fabrication.
Accelerate Your High-Temperature Engineering Projects
Request an immediate engineering review for custom large-diameter quartz tubes, diffusion vessels, or precision optical plates. Prototype manufacturing from 1 piece with rapid export dispatch to Västerås.
