High-Purity Quartz Solutions Serving Split & Dalmatia
Manufactured in our Donghai crystal smelting base and calibrated for industrial research institutes, maritime chemical facilities, and marine engineering contractors across Central Dalmatia.

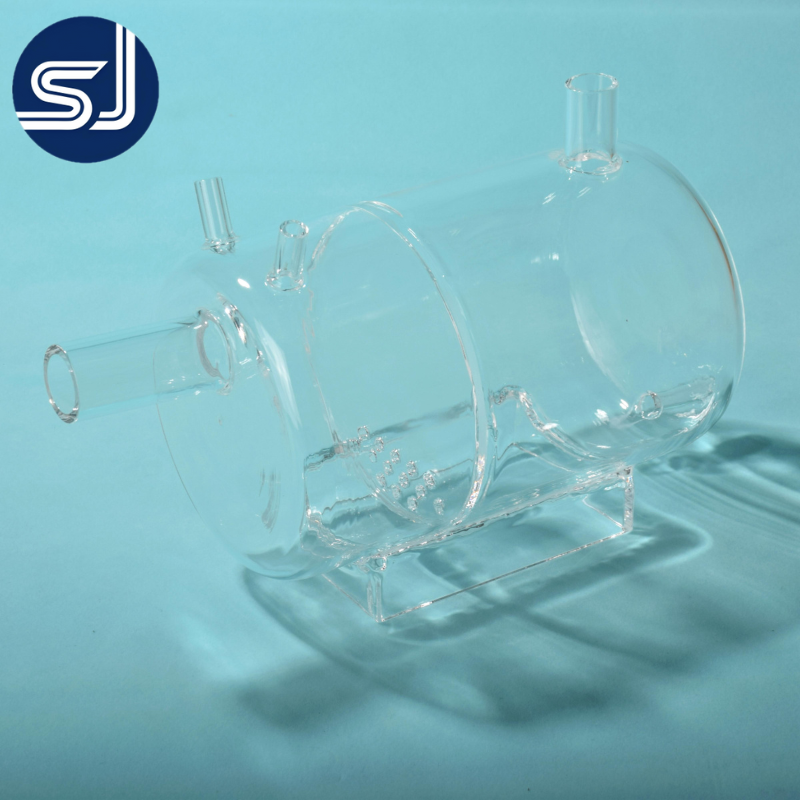

SJ QUARTZ High-Temperature 99.99% SiO₂ Lab Flow Splitting Bottle
- Continuous Service: 1100°C
- UV Transmission: >85%
- High Chemical Acid Inertness

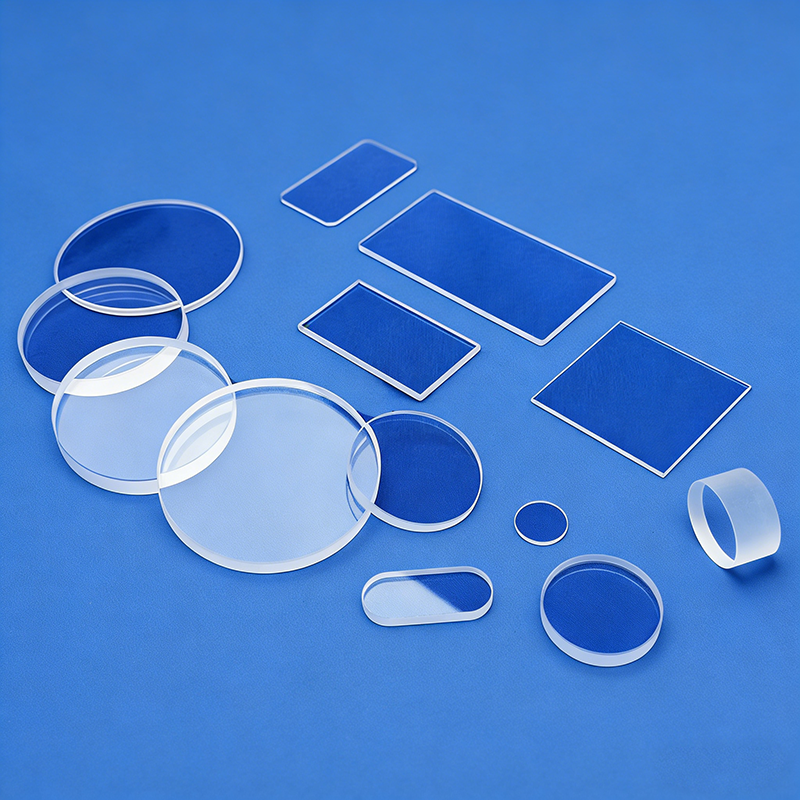

SJ QUARTZ Customized Translucent Fused Quartz Cutting Services
- Arc-Welding Thermal Barrier
- Custom Flat / Rod Profiles
- CNC Ultrasonic Cold Machining

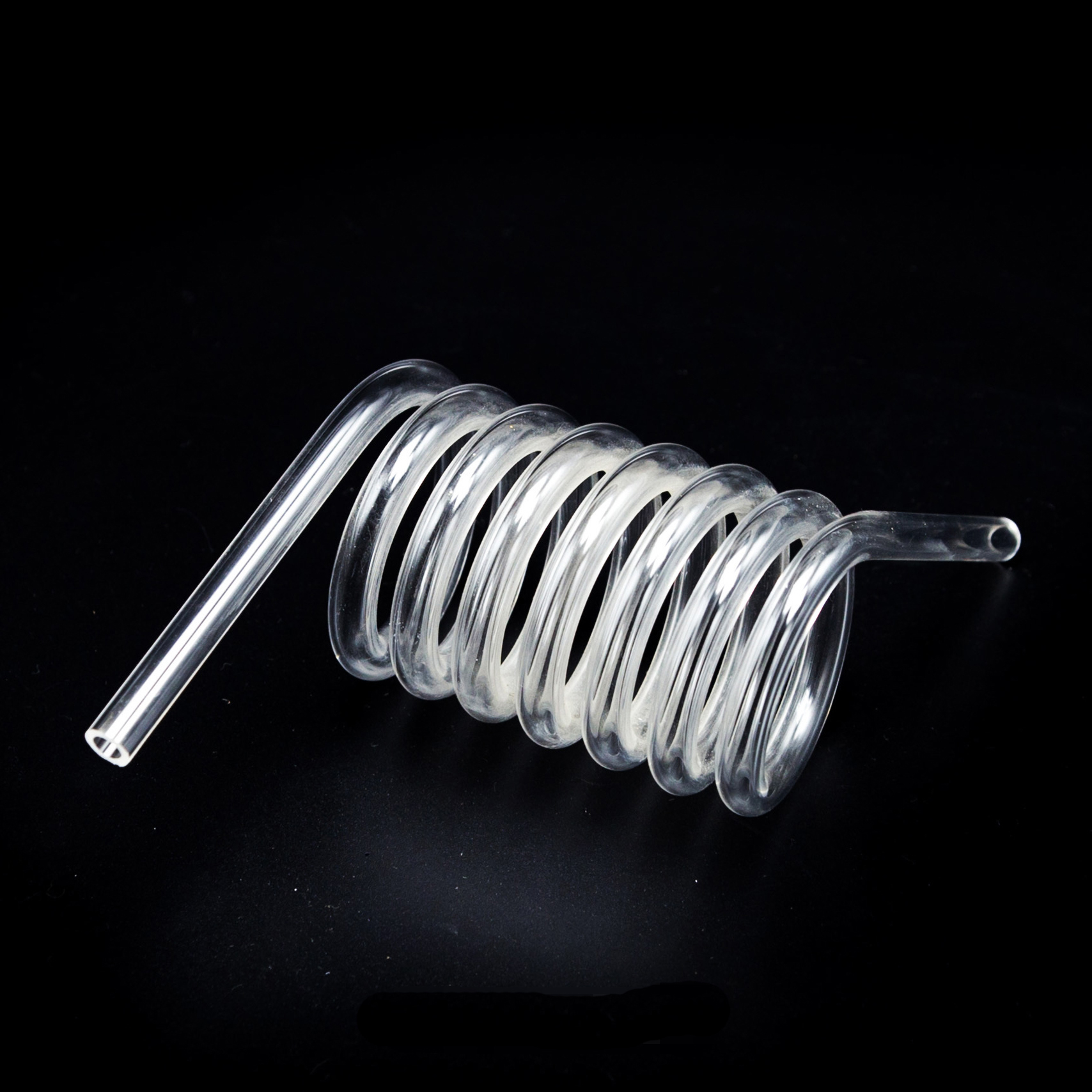

High Purity Polished Clear Quartz C-Shape & Spiral Bent Tubes
- Precision Flame Bench Bending
- Small OD Micro-Forming
- Annealed Internal Stress Relief
Ultra-Thin Optical Grade Clear Quartz Testing Sheet (SJ-077)
- High Thermal Conductance
- Double-Sided Laser Polished
- Zero Bubble Inclusions Class A

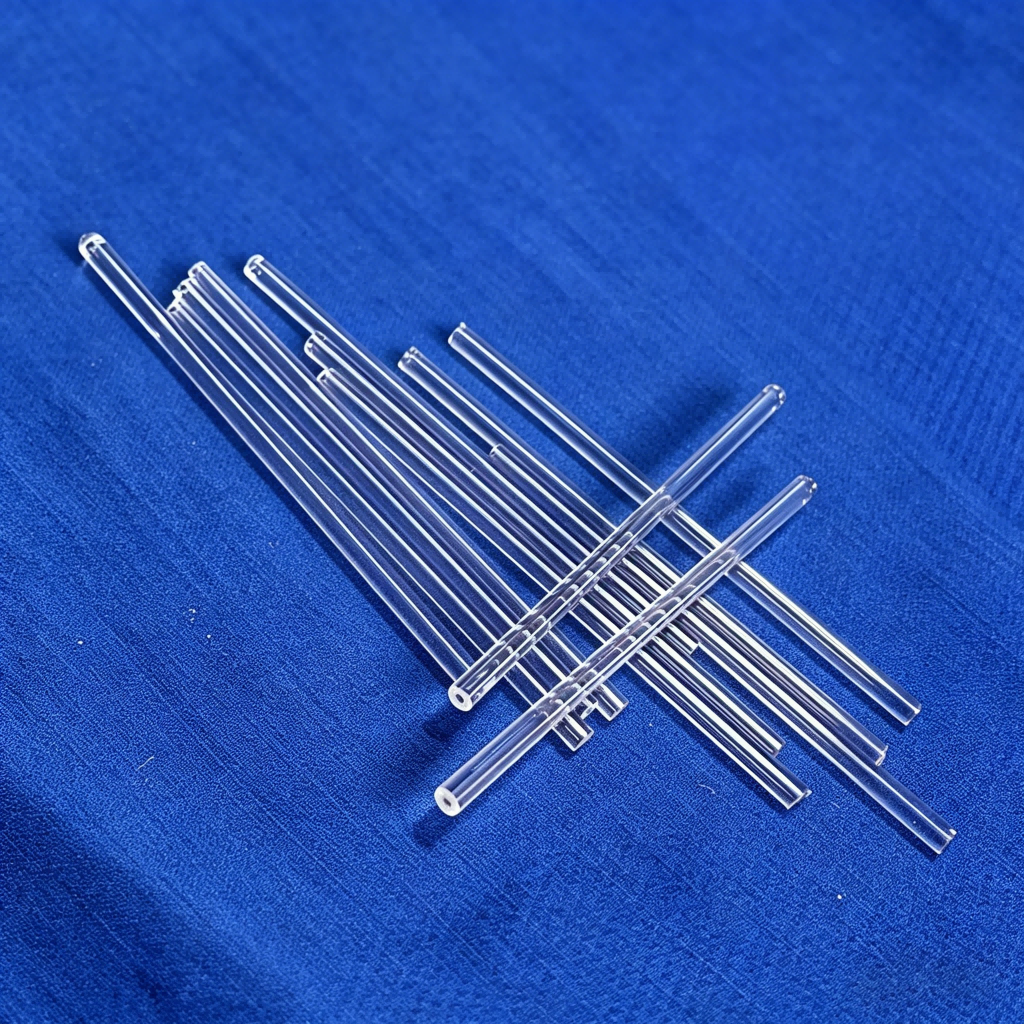

Micro Capillary Quartz Glass Tube 99.9%–99.999% SiO₂ (2–10mm OD)
- Micro-Precision Bore Tolerances
- Lab Exhaust & Fluid Metering
- Opaque & Transparent Variants

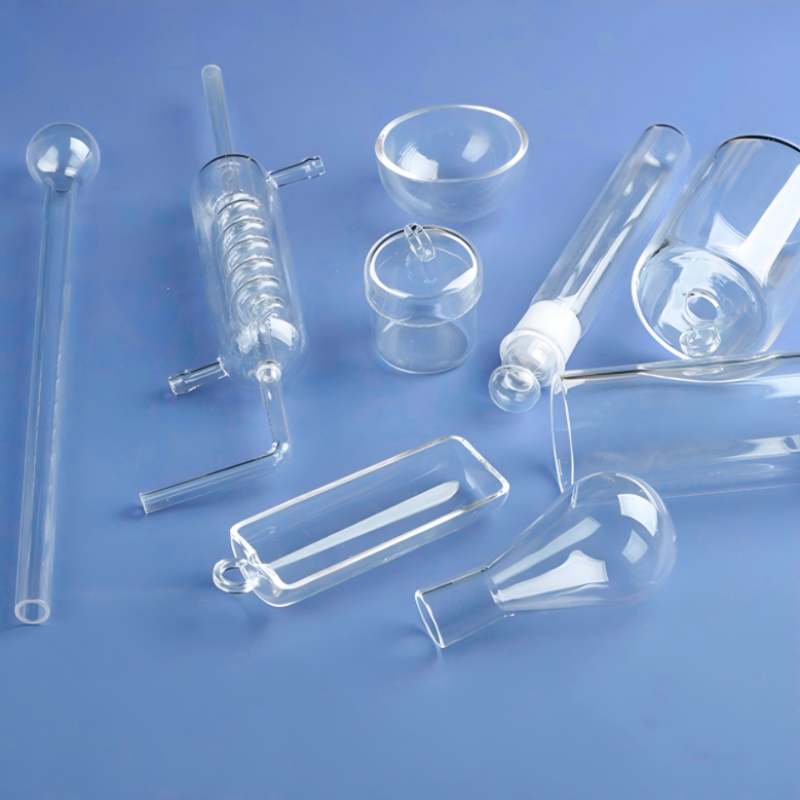

Quartz Glass Tube Plugging Rod & Heating Test Furnace Boat
- High-Frequency RF Induction Safe
- Softening Point: 1683°C
- Flame Polished End Terminals
SJ 130 High-Precision Negative Pressure Leak-Proof Vacuum Tube
- 99.99% SiO₂ Purity Control
- High Vacuum Hermetic Integrity
- Zero Wall Thickness Distortion

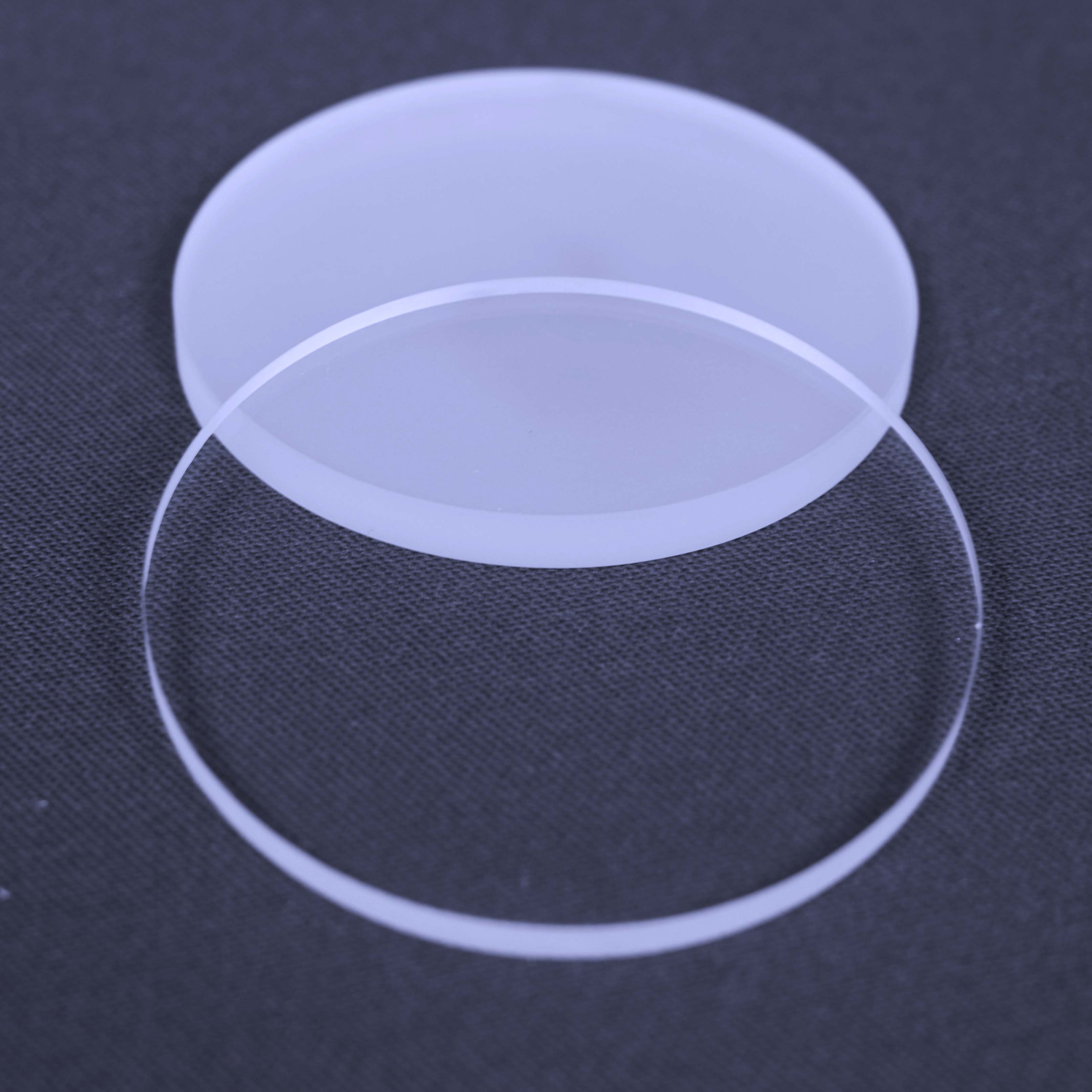

High Transmittance XRD Clear Quartz Sample Holder Discs
- Zero Background Interference
- Flatness: < λ/4 per 25mm
- Extreme X-Ray Flux Resistance
Clear Quartz Rod Fabrication: Material Mechanics & Supply Logistics for Split, Croatia
As the primary industrial, maritime, and technological center of Dalmatia, the City of Split (Grad Split) exhibits a distinct and sophisticated demand profile for specialty fused silica and clear quartz rod components. Positioned along the Adriatic Sea, Split coordinates an intricate network of naval repair yards, advanced research laboratories at the University of Split (Sveučilište u Splitu), municipal water desalinization and ballast-water UV disinfection installations, alongside emerging green hydrogen and solar energy test beds in the Dugopolje and Kaštela economic corridors. Supplying high-purity clear quartz rods to this region requires an exhaustive understanding of thermal mechanics, chemical inertness under marine micro-atmospheres, and precision dimensional tolerances that exceed conventional borosilicate standards.
"In coastal Dalmatia's rigorous testing environments—where high thermal gradients meet marine salt-fog atmospheres—clear quartz glass (99.99%+ SiO₂) represents the singular engineering medium capable of surviving continuous 1100°C furnace cycling and aggressive halide corrosive attack without devitrification or dielectric breakdown."
1. Fused Natural Quartz vs. Synthetic Fused Silica: The Metallurgy of Clear Rods
Clear quartz rods manufactured by Vulra Quartz originate from crystalline natural quartz sand harvested and purified in the world-renowned Donghai quartz belt. Through high-temperature oxy-hydrogen flame fusing and electric fusion pulling processes, raw silicon dioxide is transformed into amorphous vitreous silica with crystalline inclusions completely eliminated. For engineering teams operating across Split's scientific laboratories (such as the Faculty of Chemistry and Technology - KTF and the Faculty of Electrical Engineering, Mechanical Engineering and Naval Architecture - FESB), choosing between natural fused quartz and synthetic fused silica hinges on critical thermodynamic and spectral variables:
Natural Fused Quartz (SiO₂ ≥ 99.99%): Characterized by ultra-low thermal expansion (5.5 × 10⁻⁷ cm/cm·°C from 20°C to 320°C), superior flexural rigidity, and high resistance to thermal shock. It can withstand rapid plunging from 1100°C directly into ice-cold seawater without fracturing. Natural clear quartz rods provide excellent mechanical strength for structural supports, pyrometry sight guides, level indicators in high-pressure steam boilers, and stirrers for aggressive molten salts.
Synthetic Fused Silica (SiO₂ ≥ 99.999%): Synthesized from silicon tetrachloride (SiCl₄) gas chemical vapor deposition (CVD). This ultra-pure grade contains zero metallic impurities (Fe < 0.05 ppm, Al < 0.1 ppm), ensuring total optical clarity into the deep ultraviolet (DUV 190 nm) spectrum. It is essentially immune to bubble seeds and striations, making it the material of choice for optical laser transmission rods, UV ballast disinfection lamps across Split's passenger ferry terminals, and photochemical reactors.
| Property Parameter | Semiconductor Grade Clear Rod | Optical Clear Rod (JGS1/JGS2) | Industrial Thermal Clear Rod |
|---|---|---|---|
| SiO₂ Purity Level | ≥ 99.999% | ≥ 99.99% | ≥ 99.95% |
| Hydroxyl (OH⁻) Content | < 5 ppm (Low OH) / > 1200 ppm (High OH) | 10 – 30 ppm | 15 – 45 ppm |
| Continuous Service Temperature | 1150 °C | 1100 °C | 1050 °C |
| Short-Term Peak Temperature | 1450 °C | 1350 °C | 1250 °C |
| Optical Transmission (254nm / 10mm) | > 90% | > 86% | > 78% (Focus on infrared) |
| Refractive Index (nd at 587.6 nm) | 1.4585 | 1.4584 | 1.4580 |
| Dielectric Strength (20°C, 1MHz) | 25–40 kV/mm | 20–35 kV/mm | 18–25 kV/mm |
2. Precision Cold Machining & Fire Polishing Capabilities
Clear quartz rods supplied to Split are not merely continuous stock rods; they undergo precision post-drawing fabrication tailored to engineering drawings. Vulra Quartz integrates both hot-fire processing and CNC cold diamond machining in one facility:
• Centerless Precision Grinding: Produces cylindrical rods with diameter tolerances down to ±0.02 mm, essential for leak-tight O-ring sealing in high-pressure reactor fittings and Swagelok quartz adaptors.
• Fire Polished Terminals: Flame rounding and optical flame glazing of rod ends eliminate micro-cracks and notch-stress risers, multiplying mechanical bending strength and enhancing light injection efficiency in optical guide assemblies.
• Micro-Grooving, Chamfering, and Threading: Utilizing diamond-coated ultrasonic tools to introduce step notches, conical points for molten droplet dispensing, or custom bevels for analytical instrumentation in marine environmental observatories across the Dalmatian Archipelago.
Localized Clear Quartz Rod Applications Across Split
From the Port of Split maritime operations to high-technology laboratories in Split-Dalmatia County (Splitsko-dalmatinska županija), our clear quartz rods fulfill critical technological functions.
Marine Exhaust & Maritime Ballast UV Purification
In accordance with IMO (International Maritime Organization) regulations and Mediterranean Sea coastal protections, ferry fleets operating out of the Port of Split utilize ultraviolet ballast water treatment systems. High-transmittance clear quartz rods serve as optical monitoring probes and light guide feeds, verifying germicidal 254 nm irradiance without fouling or structural fatigue from high salinity Adriatic seawater.
Shipyard Arc-Welding Ceramic-Quartz Backing Spacers
Split’s rich naval manufacturing heritage—spanning Brodosplit and specialized yacht refit facilities in Vranjic and Kaštela—demands non-conductive, ultra-high temperature backing rods for exotic alloy arc-welding. Clear quartz rods serve as inert, non-contaminating backing members during TIG/MIG welding of duplex stainless steel and titanium piping for naval craft, preventing oxidation and slag contamination.
University Research & Photoelectrochemical Testing
Academic researchers at the University of Split Campus (Ruđera Boškovića) deploy our optical-grade clear quartz rods in photocatalytic split-cell reactors and analytical spectrofluorometers. Zero fluorescence interference and broad UV-VIS-NIR transmittance ensure pristine baseline stability during thin-film solar testing, green hydrogen electrolysis, and microplastic optical detection.
High-Temperature Pyrometry & Industrial Sight Glasses
Industrial thermal facilities and cement processing complexes around Split and Solin utilize polished clear quartz rods as pyrometer light conduits. By extending into furnace cores exceeding 1200°C, these rods accurately guide infrared radiation outside the harsh thermal zone to optical pyrometers, isolating delicate sensors from destructive convection gases.
Coastal Environmental Spectrometry & Chromatography
The Institute of Oceanography and Fisheries (IZOR) in Split leverages micro-dimensioned quartz stirring rods and optical light guides to execute volatile organic compound (VOC) testing and marine biodiversity monitoring. Clear quartz resists continuous exposure to boiling nitric, sulfuric, and hydrochloric acid cleaning cycles without surface pitting or sodium leaching.
Split Industrial & Clean-Tech Trends Shaping Quartz Consumption (2025–2030)
The Dalmatian economy is undergoing a systematic modernization, balancing its historic maritime core with cutting-edge academic innovation and stringent European Union Green Deal targets. Key developments driving clear quartz rod procurement in Split include:
1. Adriatic Port Electrification & Green Ship-Repair: As the Port of Split adopts carbon-neutral port initiatives, shoreside marine engineering projects require clean, contaminant-free fabrication materials. Fused quartz eliminates iron or carbon contamination during heat treatments of high-nickel marine alloys, positioning clear quartz rods as indispensable tooling in modern maritime repair workshops.
2. Solar Thermal Concentration & Photovoltaic Development: Dalmatia boasts the highest solar irradiation levels in Croatia (exceeding 2,700 hours of sunlight annually). Renewable energy start-ups and university incubators across Dugopolje are advancing custom solar concentrators. Polished quartz rods, serving as total-internal-reflection (TIR) optical light pipes, efficiently focus concentrated solar flux into miniature photovoltaic test cells without thermal degradation.
3. Advanced Water Recycling in Mediterranean Tourism: Increasing pressure on freshwater resources across the central Dalmatian islands (Brač, Hvar, Šolta) has spurred investment in localized UV-C advanced oxidation water purification. High-power UV systems rely on synthetic fused quartz rods for laser-induced fluorescence sensors and disinfection lamp guides, requiring steady OEM quartz supply chains to maintain 24/7 water safety standards.
Why Split Engineers & Buyers Choose Vulra Quartz
Direct from Donghai County—the global epicenter of high-purity quartz processing—Lianyungang Vulra Quartz Products Co., Ltd. provides European procurement teams with verified manufacturing credentials, eliminate middlemen, and ensure absolute drawing-to-part fidelity.
TÜV Rheinland Audited
On-site inspected and verified manufacturing plant, legal accreditation, and internal QC documentation confirmed by independent European auditors.
Custom Prototype from 1 PC
We welcome 1-piece custom prototyping for university researchers and R&D pilots in Split before scaling into recurring containerized supply contracts.
Rapid Drawing-to-Bench Review
Our senior chemical and mechanical glassblowers review 2D/3D CAD drawings within 24 hours, evaluating wall stress, tolerances, and thermal geometry.
Anti-Shock Export Packaging
Individual bubble suspension, EPE custom-molded foam slots, sealed desiccant packs, and heavy-duty multi-layer fumigated plywood crates guaranteed for long-haul maritime or air freight.
Frequently Asked Questions: Sourcing Quartz Rods to Split
Essential guidance covering customs, logistics, technical parameters, and quality assurance for Croatian industrial buyers.
What is the standard delivery timeframe for custom quartz rods delivered to Split, Croatia?
For custom fabrication based on CAD drawings (e.g., centerless ground rods, fire-polished tips, or stepped profiles), production typically spans 7 to 14 business days depending on quantity. For Split and Dalmatian destinations, urgent prototype shipments are dispatched via express air freight (DHL Express / FedEx / UPS) with delivery times of 4 to 6 business days directly through Zagreb (ZAG) or Split Airport (SPU). For volume batch shipments, consolidated maritime sea freight to Port of Rijeka or Port of Split takes approximately 28 to 35 calendar days.
How are import customs clearance and European VAT handled for shipments into Croatia?
Croatia is a full member state of the European Union. Vulra Quartz provides comprehensive export compliance documentation including commercial invoices with harmonized system (HS) classification codes (typically HS Code 7002.20 for quartz glass rods), detailed packing lists, Certificates of Origin, and Mill Test Purity Certificates. Shipments can be arranged under standard Incoterms 2020: CIF Port of Split, DAP your industrial facility address in Split / Solin / Dugopolje, or DDP where all import duties and 25% Croatian PDV (VAT) are settled seamlessly prior to final delivery.
What are the achievable dimensional tolerances for clear quartz rods?
Standard continuous-drawn quartz rods maintain an outer diameter (OD) tolerance of ±0.15 mm to ±0.3 mm depending on base diameter (ranging from Ø 1.0 mm up to Ø 100 mm). For critical optical mounts, laser cavities, or high-pressure gland seals, our centerless grinding and cold-machining stations achieve precision tolerances of ±0.02 mm with circularity (ovality) within 0.01 mm and straightness deviation of less than 0.5 mm per linear meter.
How does clear quartz perform in Adriatic maritime high-salt atmospheres?
Pure fused quartz (99.99%+ SiO₂) exhibits near-absolute chemical inertness against saline mist, chlorides, and humid ocean atmospheres. Unlike standard soda-lime or optical borosilicate glasses that suffer from sodium leaching, hazing, or salt-crust micro-etching over prolonged Mediterranean sea exposures, quartz glass retains total optical clarity, zero dielectric degradation, and complete surface integrity indefinitely. It is vulnerable only to hydrofluoric acid (HF) and concentrated hot phosphoric acid above 150°C.
Can you provide factory test reports and material purity certificates?
Yes. Every batch dispatch includes a formal Certificate of Conformance (CoC) and Spectrochemical Trace Impurity Analysis detailing parts-per-million (ppm) concentration of metallic oxides (Fe, Al, Ti, Ca, Mg, Na, K, Li). Where required for academic or aerospace contracts at the University of Split, we supply optical transmittance spectral curves from 190 nm to 3000 nm, CE conformity declarations, and RoHS/REACH compliance documentation.
What is the minimum order quantity (MOQ) for custom fabricated clear rods?
To support academic research, rapid industrial prototyping, and custom engineering replacements, our MOQ starts from just 1 piece for customized rods, sight windows, and quartz furnace boats. Standard stock diameter rods are available with tiered volume wholesale discounts for recurring industrial distributor and factory assembly lines.
How is fragile quartz glass protected against shipping breakage across international transit?
Export packaging is engineered for high-fragility international transport. Each quartz rod is acid-cleaned, dried, and individually encased in protective poly tubing, wrapped in multi-ply air-bubble wrap, and suspended within high-density expanded polyethylene (EPE) slotted foam. The outer packaging utilizes rigid five-ply corrugated export cartons reinforced with external corner protectors or fully enclosed ISPM-15 compliant fumigated plywood crates equipped with TiltWatch and ShockWatch impact indicators. We provide a 100% free-of-charge replacement guarantee for any transit breakage.
Require Custom Quartz Components in Split?
Send your CAD drawing, technical specifications, or bill of materials directly to our engineering desk. Receive an engineer-reviewed thermal analysis and formal quotation within 24 hours.
